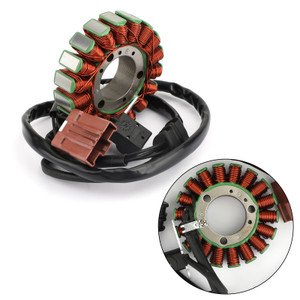

Magneto Generator Engine Stator Coil Fit For Piaggio Beverly MP3 400 500 Touring 05-15
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

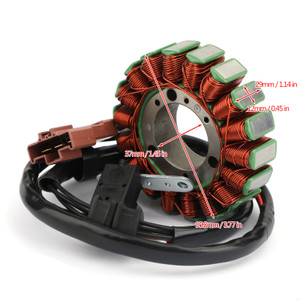

Dimensions :
Interior diameter : 37mm / 1.45 inches
Exterior diameter : 95.8mm / 3.77 inches
Pole's Thickness : 29mm / 1.14 inches
Pole's Width : 12mm / 0.45 inches
Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3(+3)
Number of poles: 18
PART NUMBER(S):
58108R
FITMENT:
Fits Gilera Fuoco 500 4T 4V ie E3 LT 2007-2014
Fits Gilera Fuoco 500 E3 2007-2014
Fits Piaggio Beverly 400 ie Tourer E3 2006-2009
Fits Piaggio Beverly 500 Cruiser E3 2005-2012
Fits Piaggio MP3 400 ie 2007-2010
Fits Piaggio MP3 400 ie LT Sport 2007-2010
Fits Piaggio MP3 400 ie LT Touring 2007-2010
Fits Piaggio MP3 400 ie MIC 2007-2010
Fits Piaggio MP3 400 RL Touring 2007-2010
Fits Piaggio MP3 500 LT Sport Business 2007-2015
Fits Piaggio MP3 500 RL Sport Business 2007-2015
Fits Scarabeo Scarabeo 500 Light (with 2 cables) 2003-2008
Fits Scarabeo Scarabeo 492 Light (with 2 cables) 2003-2008
Fits Scarabeo Scarabeo 400 Light (with 2 cables) 2003-2008
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 37mm / 1.45 inches
Exterior diameter : 95.8mm / 3.77 inches
Pole's Thickness : 29mm / 1.14 inches
Pole's Width : 12mm / 0.45 inches
Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3(+3)
Number of poles: 18
PART NUMBER(S):
58108R
FITMENT:
Fits Gilera Fuoco 500 4T 4V ie E3 LT 2007-2014
Fits Gilera Fuoco 500 E3 2007-2014
Fits Piaggio Beverly 400 ie Tourer E3 2006-2009
Fits Piaggio Beverly 500 Cruiser E3 2005-2012
Fits Piaggio MP3 400 ie 2007-2010
Fits Piaggio MP3 400 ie LT Sport 2007-2010
Fits Piaggio MP3 400 ie LT Touring 2007-2010
Fits Piaggio MP3 400 ie MIC 2007-2010
Fits Piaggio MP3 400 RL Touring 2007-2010
Fits Piaggio MP3 500 LT Sport Business 2007-2015
Fits Piaggio MP3 500 RL Sport Business 2007-2015
Fits Scarabeo Scarabeo 500 Light (with 2 cables) 2003-2008
Fits Scarabeo Scarabeo 492 Light (with 2 cables) 2003-2008
Fits Scarabeo Scarabeo 400 Light (with 2 cables) 2003-2008
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
