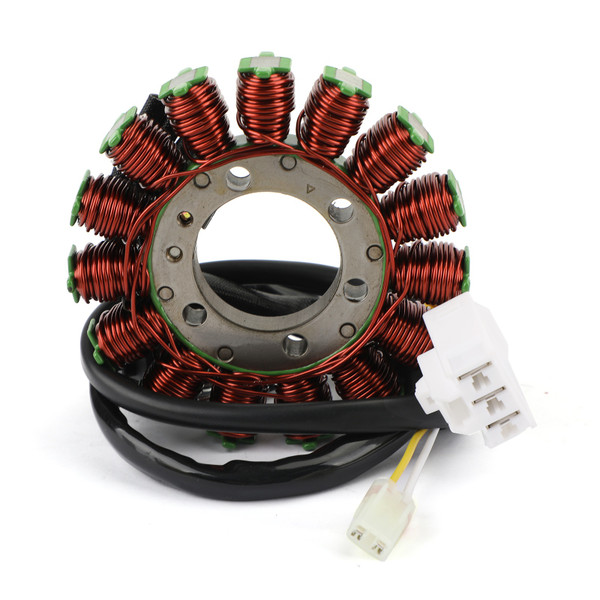

Magneto Generator Engine Stator Fit For Honda CBR1000RR ABS Fireblade 2009 31120-MFL-D01
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 37.9mm / 1.49 inches
Exterior diameter : 104.5mm / 4.11 inches
Pole's Thickness : 20.6mm / 0.81 inches
Pole's Width : 13.7mm / 0.53 inches
Other Specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 3
Number of fixation holes: 5
Number of poles: 15
PART NUMBER(S):
31120-MFL-D01
Fitments:
Fit for Honda CBR1000RR ABS Fireblade CBR1000RA9 2009
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 37.9mm / 1.49 inches
Exterior diameter : 104.5mm / 4.11 inches
Pole's Thickness : 20.6mm / 0.81 inches
Pole's Width : 13.7mm / 0.53 inches
Other Specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 3
Number of fixation holes: 5
Number of poles: 15
PART NUMBER(S):
31120-MFL-D01
Fitments:
Fit for Honda CBR1000RR ABS Fireblade CBR1000RA9 2009
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Delivery:
Free Shipping
Delivery Time:3-10 Working Days
Warranty:
Warranty Period:1 Years
Return:Goods can be returned within 60 days of receipt
24-Hour Support:Customer service throughout the day
