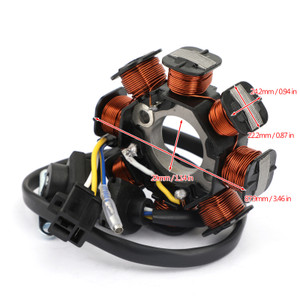

Magneto Generator Engine Stator Fit For Kawasaki KFX50 KSF50 2007-2009/2013-2017 21003-Y003
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 29mm / 1.14 inches
Exterior diameter : 87.9mm / 3.46 inches
Pole's Thickness : 24.2mm / 0.94 inches
Pole's Width : 22.2mm / 0.87 inches
Other specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 2
Number of fixation holes: 2
Number of poles: 8
PART NUMBER(S):
21003-Y003
FITMENT:
Fits Kawasaki KFX50 KSF50 2007-2009/2013-2017
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 29mm / 1.14 inches
Exterior diameter : 87.9mm / 3.46 inches
Pole's Thickness : 24.2mm / 0.94 inches
Pole's Width : 22.2mm / 0.87 inches
Other specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 2
Number of fixation holes: 2
Number of poles: 8
PART NUMBER(S):
21003-Y003
FITMENT:
Fits Kawasaki KFX50 KSF50 2007-2009/2013-2017
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
