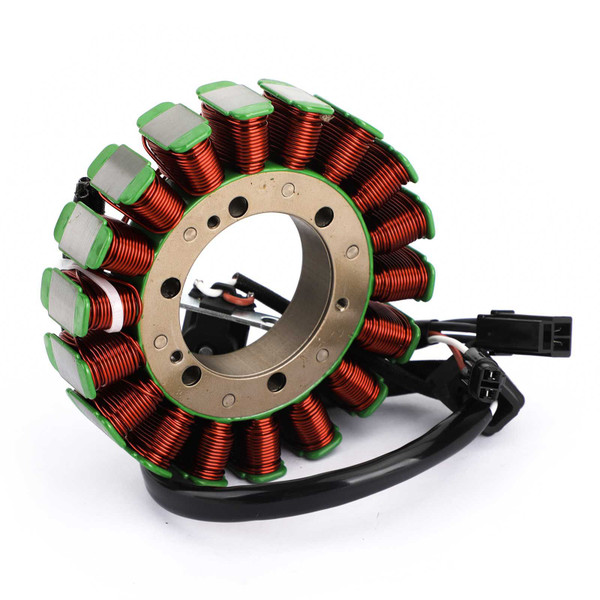

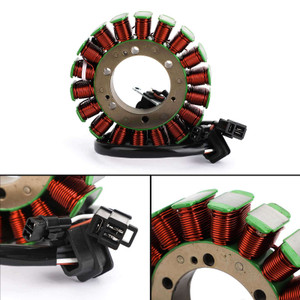

Magneto Generator Engine Stator Rotor Coil Fit For Arctic Cat Wildcat 4 X 4X 1000 0802-072 0802-064
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 53.9mm / 2.12 inches
Exterior diameter : 126.1mm / 4.96 inches
Pole's Thickness : 29.6mm / 1.16 inches
Pole's Width : 16.2mm / 0.64 inches
Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 5(+2)
Number of poles: 18
PART NUMBER(S):
0802-072
0802-064
Fitments:
Fit for Arctic Cat Wildcat 1000 GT 2012
Fit for Arctic Cat Wildcat 1000 LTD 2014
Fit for Arctic Cat Wildcat 1000 2012-2015
Fit for Arctic Cat Wildcat 1000 Metallic 2013
Fit for Arctic Cat Wildcat 1000 LATE BUILD 2013
Fit for Arctic Cat Wildcat 1000 LTD LATE BUILD 2013
Fit for Arctic Cat Wildcat 4 Metallic 2013
Fit for Arctic Cat Wildcat 4 1000 2013-2014
Fit for Arctic Cat Wildcat 4X 1000 2014-2016
Fit for Arctic Cat Wildcat X Metallic 2013
Fit for Arctic Cat Wildcat X 1000 2013-2016
Fit for Arctic Cat Wildcat X 2013-2016/2018-2019
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Delivery:
Free Shipping
Delivery Time:3-10 Working Days
Warranty:
Warranty Period:1 Years
Return:Goods can be returned within 60 days of receipt
24-Hour Support:Customer service throughout the day
