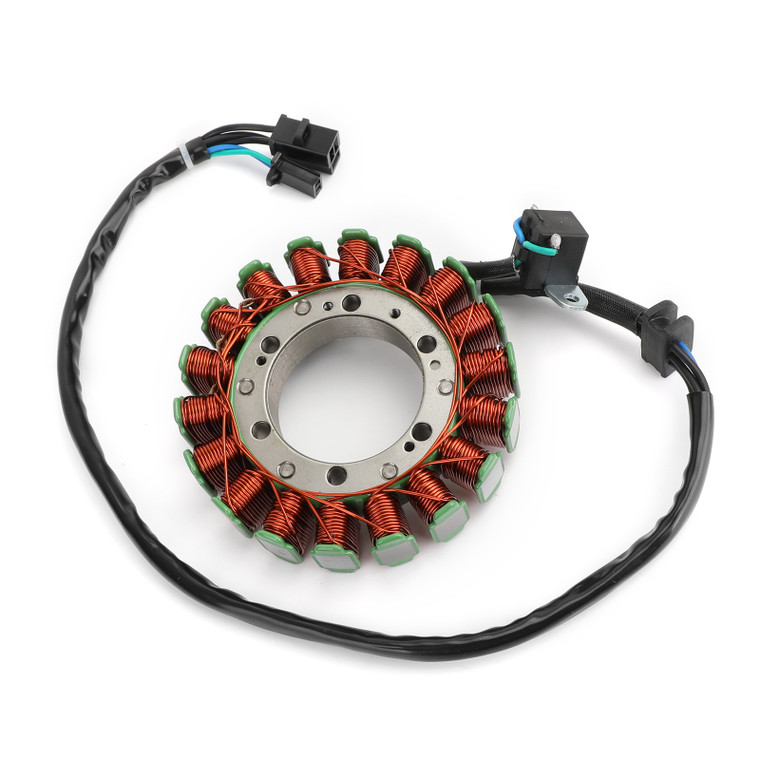

119mm Magneto Generator Stator Fit for Suzuki V-Strom 1000 2002-2012 - 32101-06G10, 32101-06G11
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil
Dimensions :
Interior diameter : 54mm
Exterior diameter : 119mm
Pole's Thickness : 30.7mm
Pole's Width : 15mm
other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 2 + 3
Number of poles: 18
Replacement Part Number:
32101-06G10
32101-06G11
Fits Make/Model/Year:
Only fits outer diameter 119mm stator versions.
Fit for Suzuki DL1000 V-Strom DL1000K2(E2) K2 2002
Fit for Suzuki DL1000 V-Strom DL1000K3(E2) K3 2003
Fit for Suzuki DL1000 V-Strom DL1000K4(E2) K4 2004
Fit for Suzuki DL1000 V-Strom DL1000K5(E2) K5 2005
Fit for Suzuki DL1000 V-Strom DL1000K6(E2) K6 2006
Fit for Suzuki DL1000 V-Strom DL1000K7(E2) K7 2007
Fit for Suzuki DL1000 V-Strom DL1000K8(E2) K8 2008
Fit for Suzuki DL1000 V-Strom DL1000K9(E2) K9 2009
Fit for Suzuki DL1000 V-Strom DL1000L0(E2) L0 2010
Fit for Suzuki DL1000 V-Strom DL1000K7(E3/E28) K7 2007
Fit for Suzuki DL1000 V-Strom DL1000K8(E3/E28) K8 2008
Fit for Suzuki DL1000 V-Strom DL1000K9(E3/E28) K9 2009
Fit for Suzuki DL1000 V-Strom DL1000L0(E3/E28) L0 2010
Fit for Suzuki DL1000 V-Strom DL1000L1(E24) L1 2011
Fit for Suzuki DL1000 V-Strom DL1000L1(E28) L1 2011
Fit for Suzuki DL1000 V-Strom DL1000L2 2012
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Stator Generator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
