Magneto Generator Engine Stator Coil For Suzuki VS600 VS750 VS800 1985-1997 VX800 1990-1996 32101-45C30
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

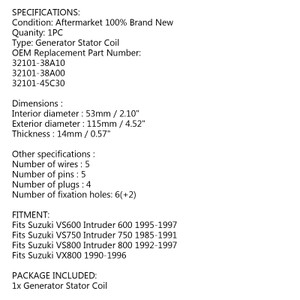

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
OEM Replacement Part Number:
32101-38A10
32101-38A00
32101-45C30
Dimensions :
Interior diameter : 53mm / 2.10"
Exterior diameter : 115mm / 4.52"
Thickness : 14mm / 0.57"
Other specifications :
Number of wires : 5
Number of pins : 5
Number of plugs : 4
Number of fixation holes: 6(+2)
FITMENT:
Fits Suzuki VS600 Intruder 600 1995-1997
Fits Suzuki VS750 Intruder 750 1985-1991
Fits Suzuki VS800 Intruder 800 1992-1997
Fits Suzuki VX800 1990-1996
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
