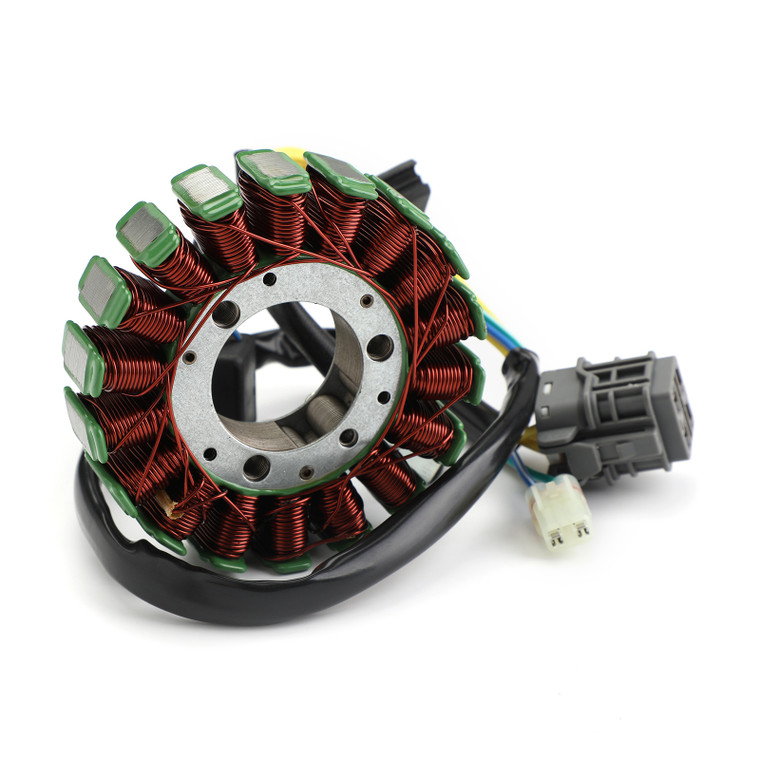

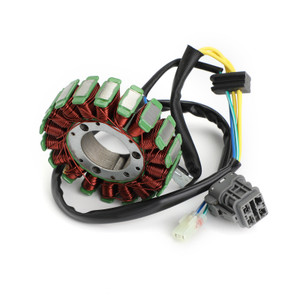

Magneto Stator For Arctic Cat ATV 250/300 250 UTILITY 2X4 AUTO 250 Utility 2X4 06-09 DVX 250 06-08 Generic

Magneto Generator Engine Stator Coil For Arctic Cat 250 Utility 2X4 2006-2009 DVX 250 2006-2008 #3303-833, 3304-682

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 3303-833, 3304-682

Dimensions :
Interior diameter : 35mm / 1.37"
Exterior diameter : 93mm / 3.68"
Pole's Thickness : 27.3mm / 1.07"
Pole's Width : 11.4mm / 0.45"

Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3(+3)
Number of poles: 18

FITMENT:
For Arctic Cat ATV 250/300 250 UTILITY 2X4 AUTO 2006-2009
For Arctic Cat 250 Utility 2X4 2006-2009
For Arctic Cat DVX 250 2006-2008

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
