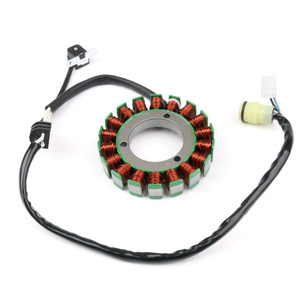

Magneto Generator Engine Stator Coil Fit For UTV,500,700,HS,MSU,YS,TSC,HiSUN,MASSIMO,BENNCHE
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil
Dimensions :
Interior diameter : Approx. 53mm / 2-11/64 in
Exterior diameter : Approx. 115mm / 4-17/32 in
Length of wires stator to grommet : Approx. 150 mm
Length of wires grommet to plug : Approx. 450 mm
Length of pickup coil's wire to grommet : Approx. 100 mm
other specifications :
Number of wires: 5
Number of pins: 3 + 2
Number of plugs: 2
Number of fixation holes: 3
Number of poles : 18
Replacement Part Number:
LU022587
327700001
31120-004-000
31100-F39-0000
31100-F39-0002
Fits Models:
Fits Most (but not ALL) EFI and Carburetor HiSUN 500 AND 700 UTV'S INCLUDING, MASSIMO, SUPERMACH, BENNCHE,MENARDS YARDSPORT and Many More !
Not for 400 and 800cc UTVs. Not for NEBULA ENGINES on some brands. Not for LINHAI Engines.
Fit For Excalibur UTV700-4,UTV700-5
Fit For Menards Yardsport YS700
Fit For Supermarch UTV700-BF-TL
Fit For Menards Yardsport EFI 700. HS500UTV
Fit For Bennche Bighorn 500 2010-2016
Fit For Bennche Bighorn 700 2010-2016
Fit For Bennche Bighorn 700X 2010-2014
Fit For Bennche Cowboy 500 2015-2016
Fit For Bennche Cowboy 700 2015-2016
Fit For Bennche Gray Wolf 500 2010-2016
Fit For Bennche Gray Wolf 700 2010-2016
Fit For Hisun Motors Corp USA Forge 450 2016
Fit For Hisun Motors Corp USA Forge 500 2016
Fit For Hisun Motors Corp USA Forge 550 2016
Fit For Hisun Motors Corp USA Forge 700 2016
Fit For Hisun Motors Corp USA Forge 750 2016
Fit For Hisun Motors Corp USA HS500 2014-2017
Fit For Hisun Motors Corp USA HS700 2014-2017
Fit For Hisun Motors Corp USA HS750 2016-2017
Fit For Hisun Motors Corp USA Sector 450 2015-2017
Fit For Hisun Motors Corp USA Sector 550 2015-2017
Fit For Hisun Motors Corp USA Sector 750 2015-2017
Fit For Hisun Motors Corp USA Strike 550 2017
Fit For Hisun Motors Corp USA Tactic 450 2017
Fit For Hisun Motors Corp USA Tactic 750 2017
Fit For Hisun Motors Corp USA Vector 450 2016-2017
Fit For Hisun Motors Corp USA Vector 500 2016-2017
Fit For Hisun Motors Corp USA Vector 550 2016-2017
Fit For Hisun Motors Corp USA Vector 700 2016
Fit For Hisun Motors Corp USA Vector 750 2016-2017
Fit For Massimo Alligator 500 2015-2016
Fit For Massimo Alligator 550 2015-2016
Fit For Massimo Alligator 700 2015-2016
Fit For Massimo Alligator 700 4 2015
Fit For Massimo Knight 500 2016
Fit For Massimo Knight 700 2016
Fit For Massimo MSA500 2015
Fit For Massimo MSU500 2015-2016
Fit For Massimo MSU700 2015
Fit For Massimo MSU700 4 2015
Fit For Qlink FrontRunner 500 2010-2013
Fit For Qlink FrontRunner 700 2010-2013
Fit For Qlink Rodeo 500 2008-2013
Fit For Qlink Rodeo 700 2008-2013
Fit For STELS ATV 500 H
Fit For STELS ATV 700 H
Fit For STELS UTV 500 H
Fit For STELS UTV 700 H
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
