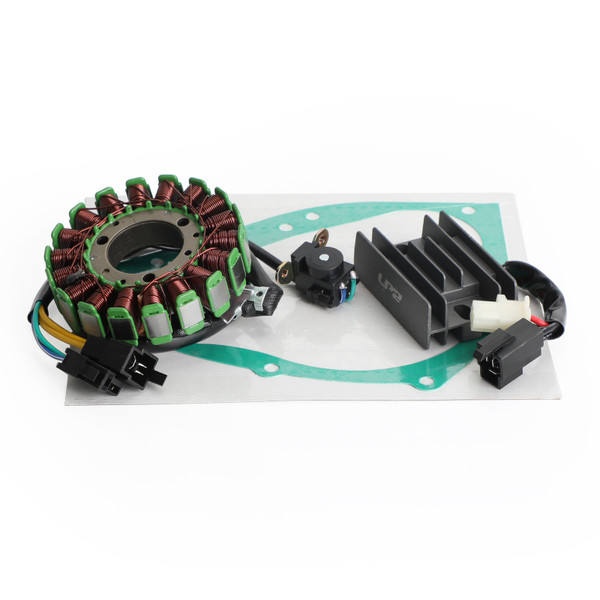

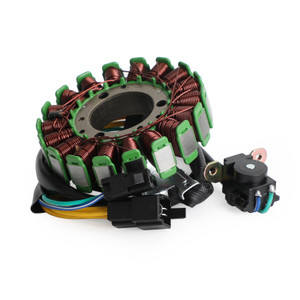

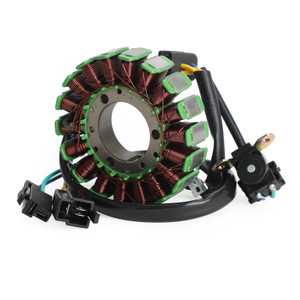

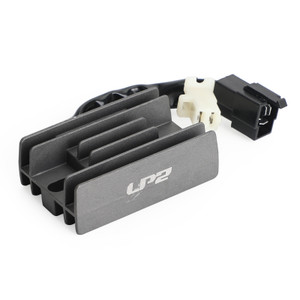

Magneto Coil Stator + Voltage Regulator + Gasket Assy For Suzuki GS125E GN125E EN125 TU1255X 1982-2009
Features:
Made of high grade magnetically conductive material to minimize the magnetic losses.
Computerized winding to optimize quality of copper wiring
Higher grade of electric components.
Dramatically improves reliability and durability comparing to stock units.
Best quality lead wires with insulation bring both enhanced abrasion and heat resistant.
Rectifier made of highest quality electro-conducting lamination materials.
Improved heat sink and charging capabilities.
Direct replacement to your original unit.
Plug-and-play, direct fit, instruction is NOT Included.
Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator + Regulator + Gasket
Replacement Part Number:
Stator Assy: 32101-05300, 32101-12F40, 32101-12F60
Rectifier, regulator: 32800-29B00
Gasket, generator cover: 11483-05300, 11483-05310, 11483-05311, 11483-05312
Fitment:
Fit for Suzuki TU125 TU125X 1999
Fit for Suzuki EN125 2004/2006-2009
Fit for Suzuki EN125-2 2003/2007-2009
Fit for Suzuki GS125 GS125E 1982-2001
Fit for Suzuki GN125 GN125E 1983-2001
(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package Includes:
1 x Stator Coil
1 x Regulator Rectifier
1 x Generator Gasket
Note:
Before installing your new stator regulator rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
Features:
Made of high grade magnetically conductive material to minimize the magnetic losses.
Computerized winding to optimize quality of copper wiring
Higher grade of electric components.
Dramatically improves reliability and durability comparing to stock units.
Best quality lead wires with insulation bring both enhanced abrasion and heat resistant.
Rectifier made of highest quality electro-conducting lamination materials.
Improved heat sink and charging capabilities.
Direct replacement to your original unit.
Plug-and-play, direct fit, instruction is NOT Included.
Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator + Regulator + Gasket
Replacement Part Number:
Stator Assy: 32101-05300, 32101-12F40, 32101-12F60
Rectifier, regulator: 32800-29B00
Gasket, generator cover: 11483-05300, 11483-05310, 11483-05311, 11483-05312
Fitment:
Fit for Suzuki TU125 TU125X 1999
Fit for Suzuki EN125 2004/2006-2009
Fit for Suzuki EN125-2 2003/2007-2009
Fit for Suzuki GS125 GS125E 1982-2001
Fit for Suzuki GN125 GN125E 1983-2001
(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package Includes:
1 x Stator Coil
1 x Regulator Rectifier
1 x Generator Gasket
Note:
Before installing your new stator regulator rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
Delivery:
Free Shipping
Delivery Time:3-7 Working Days
Warranty:
Warranty Period:1 Years
Return:Goods can be returned within 60 days of receipt
24-Hour Support:Customer service throughout the day
