Magneto Coil Stator + Voltage Regulator + Gasket Assy For Yamaha YFM400 Big Bear 400 2002-2012
Features:
Made of high grade magnetically conductive material to minimize the magnetic losses.
Computerized winding to optimize quality of copper wiring
Higher grade of electric components.
Dramatically improves reliability and durability comparing to stock units.
Best quality lead wires with insulation bring both enhanced abrasion and heat resistant.
Rectifier made of highest quality electro-conducting lamination materials.
Improved heat sink and charging capabilities.
Direct replacement to your original unit.
Plug-and-play, direct fit, instruction is NOT Included.
Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator + Regulator + Gasket
Replacement Part Number:
Stator Assy: 5FU-81410-00
Rectifier, regulator: 5GT-81960-00
Gasket, generator cover: 4KB-15451-00, 4KB-15451-01
Fitment:
Fit for Yamaha YFM400 YFM400 Big Bear 400 2WD 2002-2004
Fit for Yamaha YFM400 YFM400FW Big Bear 400 4WD 2003
Fit for Yamaha YFM400 YFM400F Big Bear 400 4WD 2002-2003
Fit for Yamaha YFM400 YFM40FWN Big Bear 400 4WD 2007-2011
Fit for Yamaha YFM400 YFM40FB Big Bear 400 4WD IRS 2007
Fit for Yamaha YFM400 YFM40FB Big Bear 400 4WD 2007-2012
Fit for Yamaha YFM400 YFM40FBH Big Bear 400 4WD Hunter 2007-2012
Fit for Yamaha YFM400 YFM40FBE Big Bear 400 4WD IRS Exploring 2007
(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

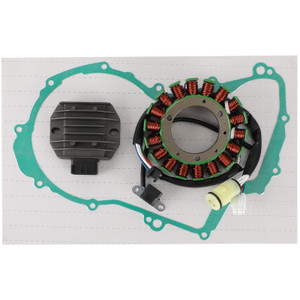

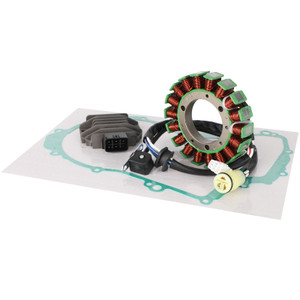

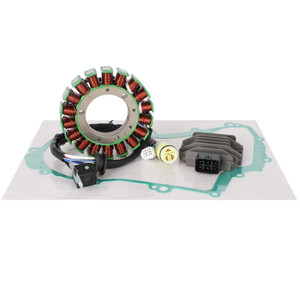

Package Includes:
1 x Stator Coil
1 x Regulator Rectifier
1 x Generator Gasket
Note:
Before installing your new stator regulator rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
