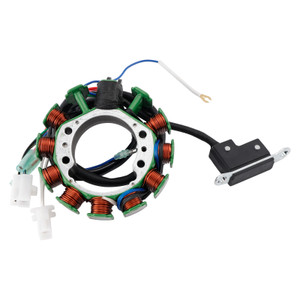

12-Pole Magneto Generator Stator Fit for Yamaha XT500 XT600 2KF 43F

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil

other specifications:
Number of wires: 7
Number of plugs: 4
Number of pins: 1 + 1 + 3 + 2
Number of fixation holes: 4
Number of poles: 12

Please compare the number of pins and plugs with the old part before purchasing.

Size:
Exterior diameter: 115mm
Interior diameter: 54mm

Replacement Part Number:
1JK-85510-50
1JK-85510-51
34L-81410-51

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year:
Fit for Yamaha SRX400 1985/1988
Fit for Yamaha SRX600S 1986
Fit for Yamaha SRX600SC 1986
Fit for Yamaha SRX600 1986-1987
Fit for Yamaha SRX600H 1986-1987
Fit for Yamaha SRX600N 1986-1987
Fit for Yamaha XT500 55A 1986
Fit for Yamaha XT500T 3BJ1 1988
Fit for Yamaha XT500T 3BJ2 1989
Fit for Yamaha XT600L 1984
Fit for Yamaha XT600LC 1984
Fit for Yamaha XT600N 1985
Fit for Yamaha XT600NC 1985
Fit for Yamaha XT600SC 1986
Fit for Yamaha XT600S 1986
Fit for Yamaha XT600 47N 1986
Fit for Yamaha XT600 43F 1986
Fit for Yamaha XT600N 49H 1986
Fit for Yamaha XT600H 43F1986
Fit for Yamaha XT600TC 1987
Fit for Yamaha XT600T 1987
Fit for Yamaha XT600 2KF 1987
Fit for Yamaha XT600N 2NF 1987
Fit for Yamaha XT600H 2KF 1987
Fit for Yamaha XT600U 1988-1989
Fit for Yamaha XT600UC 1988
Fit for Yamaha XT600 2WJ1 1988
Fit for Yamaha XT600W 1989
Fit for Yamaha XT600WC 1989
Fit for Yamaha XT600 2WJ2 1989
Fit for Yamaha XT600 3PW1 1989
Fit for Yamaha XT600N 3PX1 1989
Fit for Yamaha XT600H 3PW1 1989
Only fits Yamaha XT600 (Stator Size:- 115/54/20mm) Kick Start models. NOT for Electric Start Models.

Please check and comfirm the number of stator poles is the same as ours and if your connectors and harness looks like the one in the photo before purchasing.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
