Cylinder Piston Gasket Top End Rebuild Kit For Segway Snarler AT6 S/L 567cc SGW570F ATV Quad

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.
Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 567cc
Bore Type: Standard Bore
Placement on Vehicle: Front
Bore diameter: STD 91mm
Pin diameter: 20mm
Pin Overall Length: 56mm

Replacement Part Number:
Cylinder: LU097148, LU100976, LU100978, F01A30100001
Cylinder Base Gasket: LU097147, F01A30001001
Cylinder Head Gasket: LU097149, F01A30200001
Chain Tensioner Gasket: LU097145
Piston Kit: LU097095, LU097094, F01B00100001
Piston (Std): LU100673, F01B00001006
Pin, Piston: LU097100
Piston Ring Set (Std): LU097101, LU097097, LU097098, LU097099
Circlips, Piston Pin: LU097096

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Models:
Fit for Segway Snarler AT6
Fit for Segway Snarler AT6 S T3b
Fit for Segway Snarler AT6 L T3b
Fit for Segway Snarler AT6 S E5
Fit for Segway Snarler AT6 L E5

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

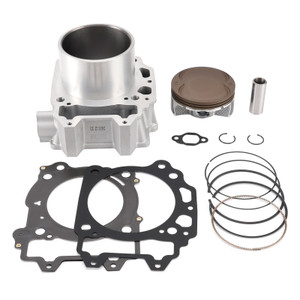

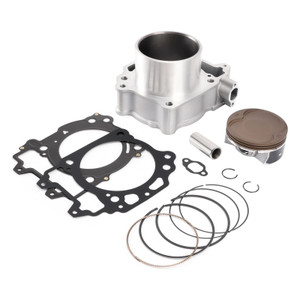

Package Includes:
1x Cylinder
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Tensioner Gasket
1x Piston
1x Wristpin
1x Piston Ring Set
2x Circlips

(Comes exactly as pictured.)

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
