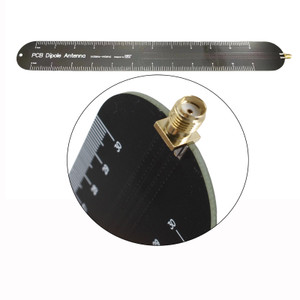

PDA435 Dipole Antenna Ruler Antenna Walkie-Talkie Antenna Amateur Band Antenna 430-440MHz
PCB dipole antenna, UHF communication, ruler antenna, walkie-talkie antenna, amateur band antenna, 430-440MHz, standing wave less than 1.2, maximum transmission power 15W, simulated gain 1.7dBi, dipole antenna is more stable than ordinary whip antenna standing wave, not affected by reference ground plane
Features:
• Wide frequency range from 430 MHz to 440MHz
• Linear polarization, excellent gain in the whole range
• Low VSWR in the whole range, no resonance
• Very low loss substrate
• Individually calibrated and tested
• Low cost
• SMA output connector
• Maximum power 10W (CW)
Applications:
• Wireless walkie-talkie system
• General SDR antenna
• Radio communication LTE, WIMAX, WIFI, PCS, UWB, GSM, HDTV, IoT
• Signal and communication intelligence (SIGINT, COMINT, ELINT)
• Pulse radar
• Wideband software defined radio (SDR) antenna
• EMC Testing
• Spectrum Analysis
• Direction Finding
Description:
The PDA435 is a PCB dipole antenna optimized for low VSWR and broadband response. The matching network has been optimized for best VSWR and clean impulse response. Each antenna is tested individually.
Specifications:
Gain: 1.7dBi @ 435 MHz
Beamwidth: Omnidirectional
VSWR: 430 MHz - 440 MHz typical
Power Handling: 10 Watts
Length: 345mm
Connector: SMA
Note:
One side is engraved with inches, the other side is engraved with centimeters
Package Included:
Option1:
1 x Dipole antenna (male)
Option2:
1 x Dipole antenna (female)
