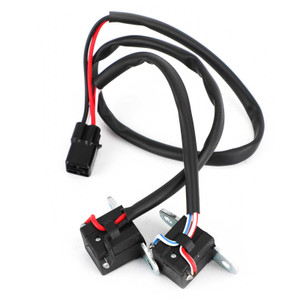

Pick-up Pulsar / Pulse Sensor Fit For Suzuki DF 25hp 30hp Outboard 2000-2007
Features:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Pick up pulsar coil
Dimensions:
Height: 24.1mm
Length: 18.5mm
Width: 17.8mm
Bracket center to center: 33.8mm
Other Specifications:
Number of wires: 4
Number of plugs: 1
Number of pins: 4
Number of Sensors: 2
PART NUMBER:
32160-89J00
Fitments:
Fit for Suzuki DF25 2000-2006
Fit for Suzuki DF30 2000-2007
Package Included:
1x Ignition Timing coil
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
NOTE:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.
Features:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Pick up pulsar coil
Dimensions:
Height: 24.1mm
Length: 18.5mm
Width: 17.8mm
Bracket center to center: 33.8mm
Other Specifications:
Number of wires: 4
Number of plugs: 1
Number of pins: 4
Number of Sensors: 2
PART NUMBER:
32160-89J00
Fitments:
Fit for Suzuki DF25 2000-2006
Fit for Suzuki DF30 2000-2007
Package Included:
1x Ignition Timing coil
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
NOTE:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.
Delivery:
Free Shipping
Delivery Time:3-10 Working Days
Warranty:
Warranty Period:1 Years
Return:Goods can be returned within 60 days of receipt
24-Hour Support:Customer service throughout the day
