Piston Pin Ringw Kit Bore Size ?73.25mm For Suzuki DR250 DR250R DR250S DR250SE DRZ250 90-07
FEATURES:
Manufactured using the latest computerized technologies derived from GP and F1.
Forged pistons are more temperature resistant and longer lasting than cast pistons.
These pistons additionally have a piston skirt coating.
The piston sets are supplied complete with rings, bolts and clips.
Airtight function,prevent gas leakage from the top of the piston.
This piston ring also achieve the heat dissipation effect.
Prevent excessive oil from entering the combustion chamber and to fully lubricate the cylinder wall.
Maintain the direction of movement of the piston,so please select the best piston ring for the engine.
This kit includes a piston, rings, wrist pin, and circlips.
Professional install will be highly recommanded.No installation instruction included.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Material: Aluminum

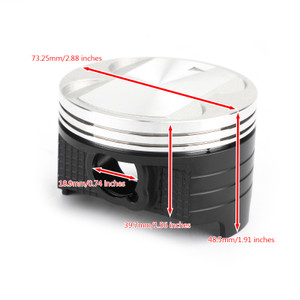

Bore Size: 73.25mm (+0.24MM)
Height: Approx 48.5mm/1.91 inches
Attention:Modified piston,check out the bore size & height fits your bike or not before you purchase.
PART NUMBER(S):
Piston: 12111-13E00-0F0,12111-15D00-0F0,12111-15D10-0F0
Rings: 12140-13E00
Wrist Pin: 12151-17C00
circlips: 09381-19001
FITMENT:
Fits Suzuki DR250 1990-1991
Fits Suzuki DR250R 1998-2000
Fits Suzuki DR250S 1990-1994
Fits Suzuki DR250SE 1995
Fits Suzuki DRZ250 2001-2007
Fits Suzuki AN250 Burgman 250 1998-2006
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
PACKAGE INCLUDED:
1x Piston Pin Ring Kit
NOTE:
Please check out the P/N & height fits your bike or not before you purchase.
FEATURES:
Manufactured using the latest computerized technologies derived from GP and F1.
Forged pistons are more temperature resistant and longer lasting than cast pistons.
These pistons additionally have a piston skirt coating.
The piston sets are supplied complete with rings, bolts and clips.
Airtight function,prevent gas leakage from the top of the piston.
This piston ring also achieve the heat dissipation effect.
Prevent excessive oil from entering the combustion chamber and to fully lubricate the cylinder wall.
Maintain the direction of movement of the piston,so please select the best piston ring for the engine.
This kit includes a piston, rings, wrist pin, and circlips.
Professional install will be highly recommanded.No installation instruction included.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Material: Aluminum
Bore Size: 73.25mm (+0.24MM)
Height: Approx 48.5mm/1.91 inches
Attention:Modified piston,check out the bore size & height fits your bike or not before you purchase.
PART NUMBER(S):
Piston: 12111-13E00-0F0,12111-15D00-0F0,12111-15D10-0F0
Rings: 12140-13E00
Wrist Pin: 12151-17C00
circlips: 09381-19001
FITMENT:
Fits Suzuki DR250 1990-1991
Fits Suzuki DR250R 1998-2000
Fits Suzuki DR250S 1990-1994
Fits Suzuki DR250SE 1995
Fits Suzuki DRZ250 2001-2007
Fits Suzuki AN250 Burgman 250 1998-2006
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
PACKAGE INCLUDED:
1x Piston Pin Ring Kit
NOTE:
Please check out the P/N & height fits your bike or not before you purchase.
