Raspberry Pi 5 Ethernet Expansion Board PoE Power Supply For Official Shell

Raspberry Pi 5 Ethernet Expansion Board PoE Power Supply Module 802.3af/at Network Standard Compatible Official Shell

Description:

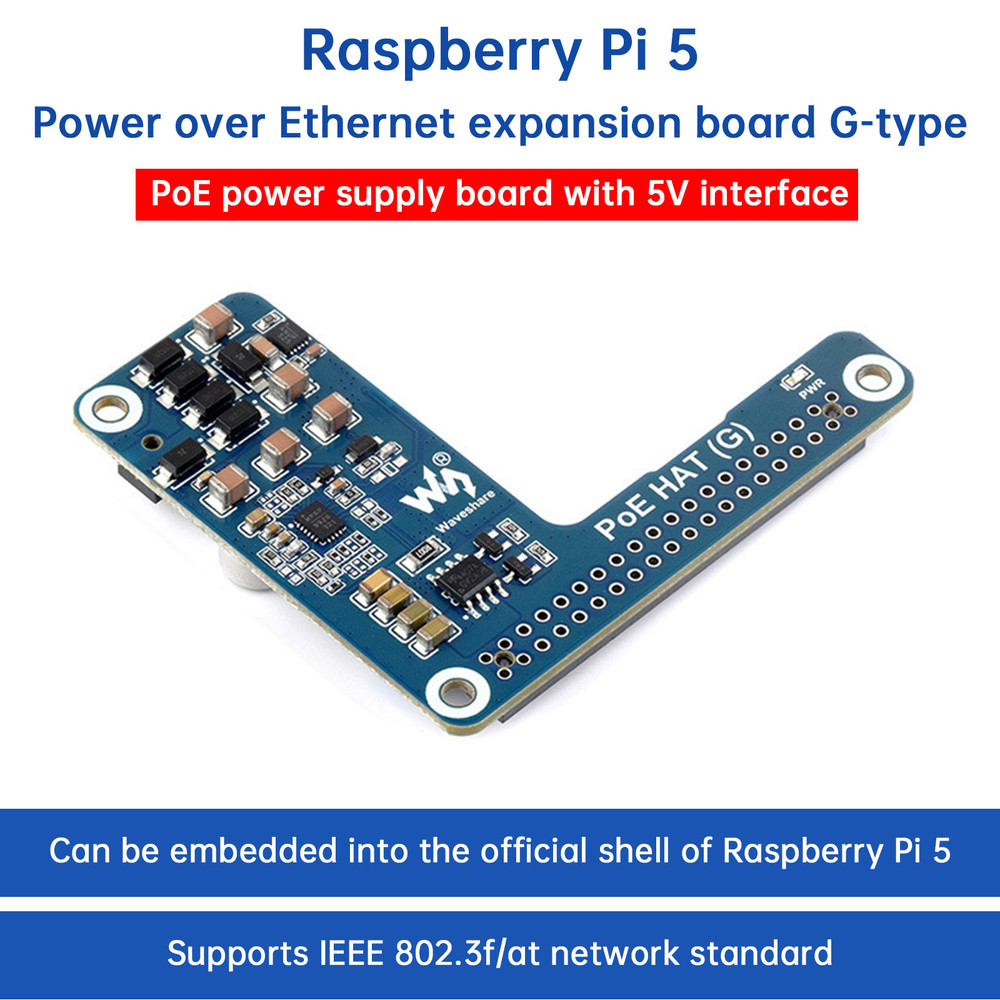

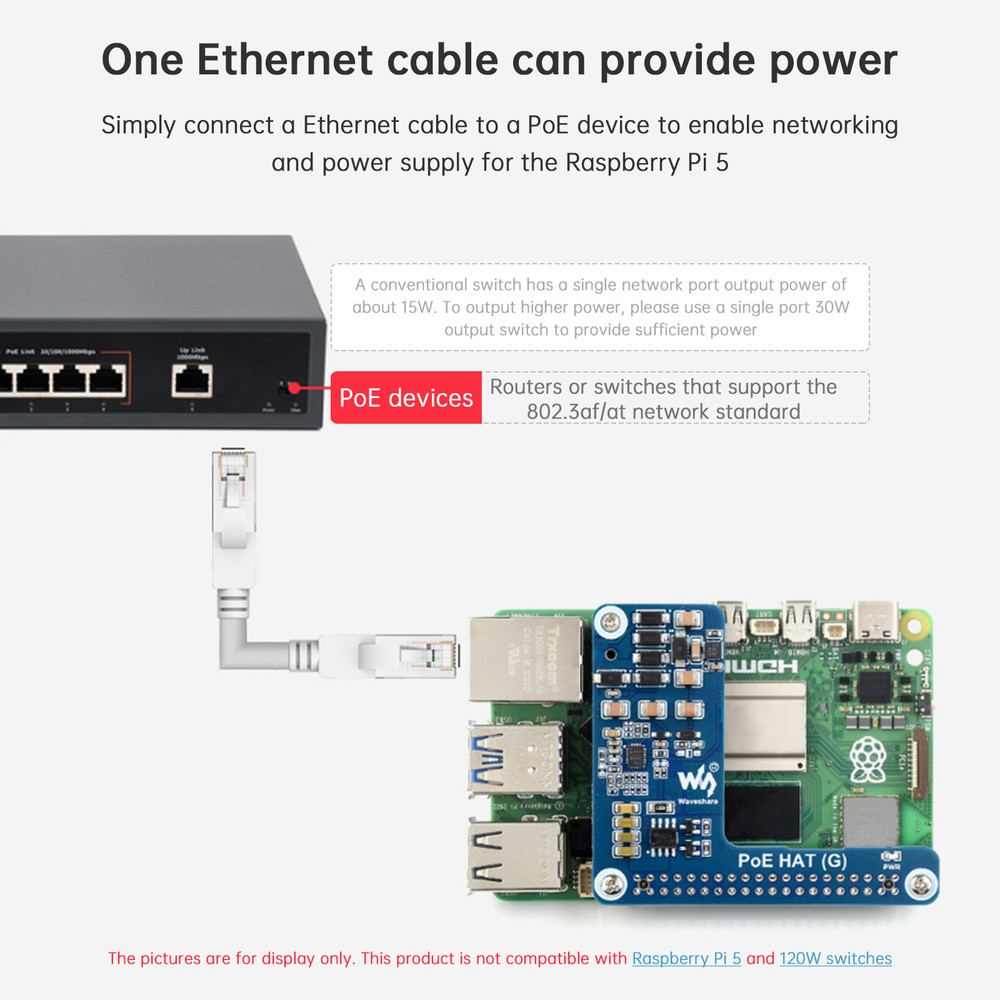

A Power over Ethernet (PoE) expansion board for Raspberry Pi5, supporting IEEE802.3af/at network standards. Suitable for use with PoE routers or switches that support IEEE 802.3af/at network standards. Only one network cable is needed to connect the Raspberry Pi to the Internet and power it.

Features:

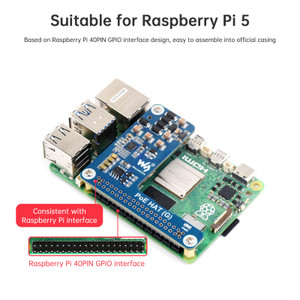

1.Based on Raspberry Pi 40PIN GPIO interface
2.Supports PoE Ethernet power supply, supports IEEE 802.3af/at PoE network standards
3.Onboard imported IC solution, PoE power supply performance is more stable
4.Uses non-isolated switch mode power supply
5.Small and easy to assemble

Specification:
PoE expansion board
PoE power input: 38V ~57V DC input
Power output: GPIO pin header: 5V 5A (MAX)

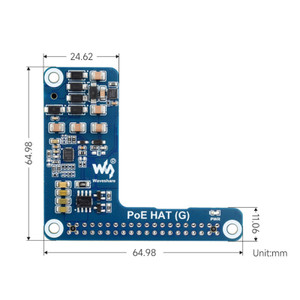

Product size: 56.5 x 64.98mm
Network standard: Support IEEE 802.3af/at PoE

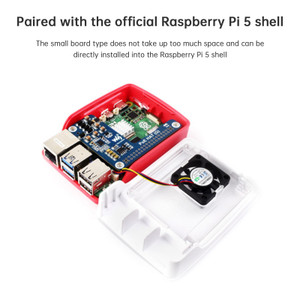

Official Raspberry Pi case
Input voltage: 5V DC (powered by Raspberry Pi 5 fan interface)
Fan speed control: pulse width modulation control with tachometer
Air volume: 2.79 CFM (Max)
Fan speed: 8000 RPM±15% (Max)
Case material: ABS (base, frame, cover) and PC (fan assembly)

Package Include:
1x Raspberry Pi 5 Ethernet Expansion Board
