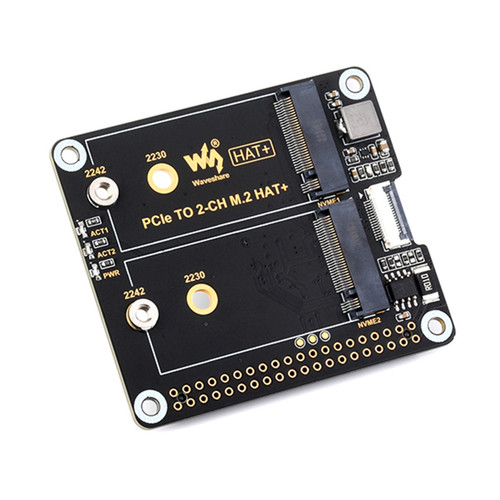

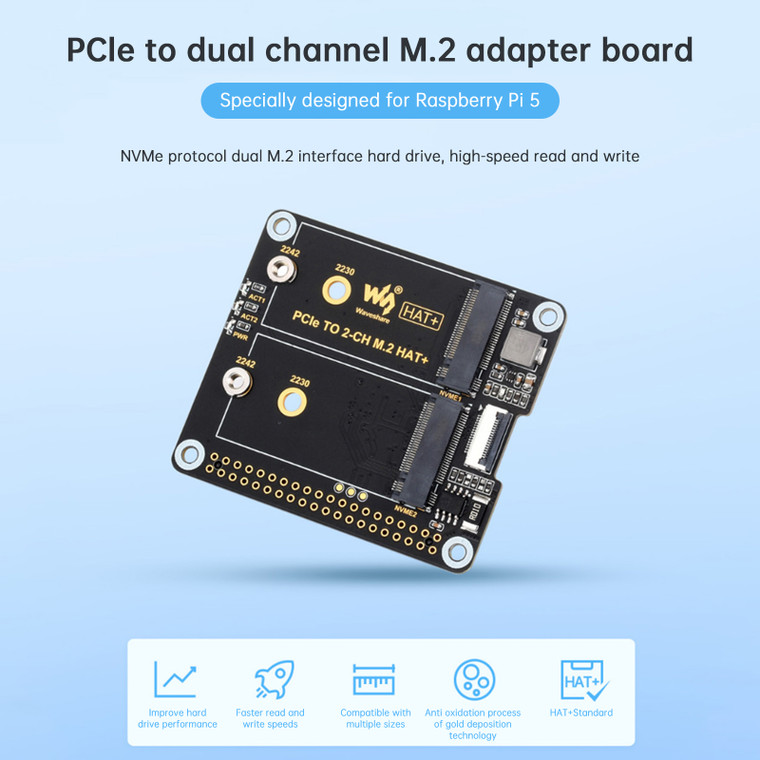

Raspberry Pi 5th Generation PCIe to Dual-Channel M.2 Adapter Board Nvme Protocol Dual M.2 Interface Hard Drive Pi5 Expansion Board
Features:
1.PCle to dual-channel M.2 adapter board, specially designed for Raspberry Pi5, NVMe protocol dual M.2 interface hard disk, high-speed reading and writing
2.Can be connected to PI5 through 16PIN cable, based on PI5's 16PIN PCle interface design

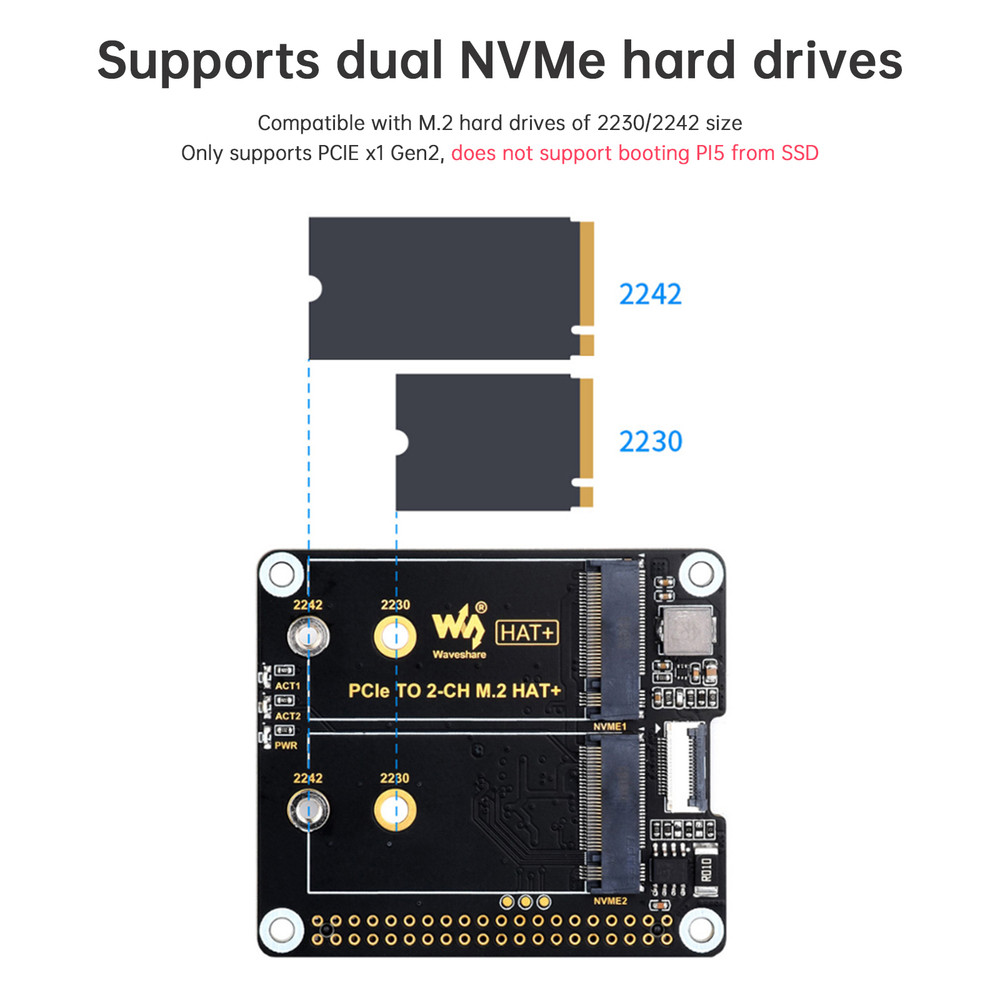

3.Supports dual NVMe hard disks, compatible with 2230/2242 size M.2 hard disks, only supports PCIE x1 Gen2, does not support starting PI5 from SSD
4.Onboard LED indicator, the working status of the device is clear at a glance
5.Onboard power monitoring chip and EEPROM, real-time control of hard disk power status is more convenient, and the operation is more stable

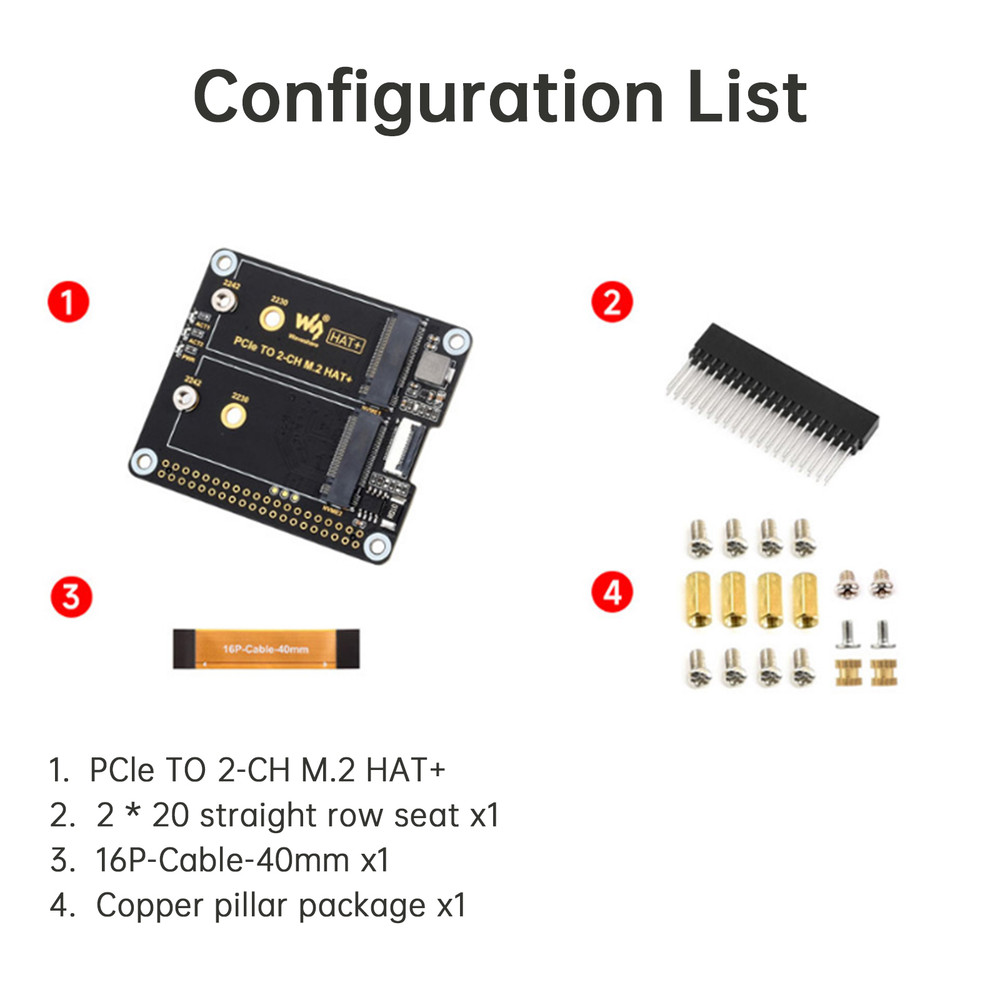

Package Include:
1x PCle TO 2-CH M.2 HAT+
1x 16P-Cable-40mm
1x 2*20 straight socket
1x Copper column package
