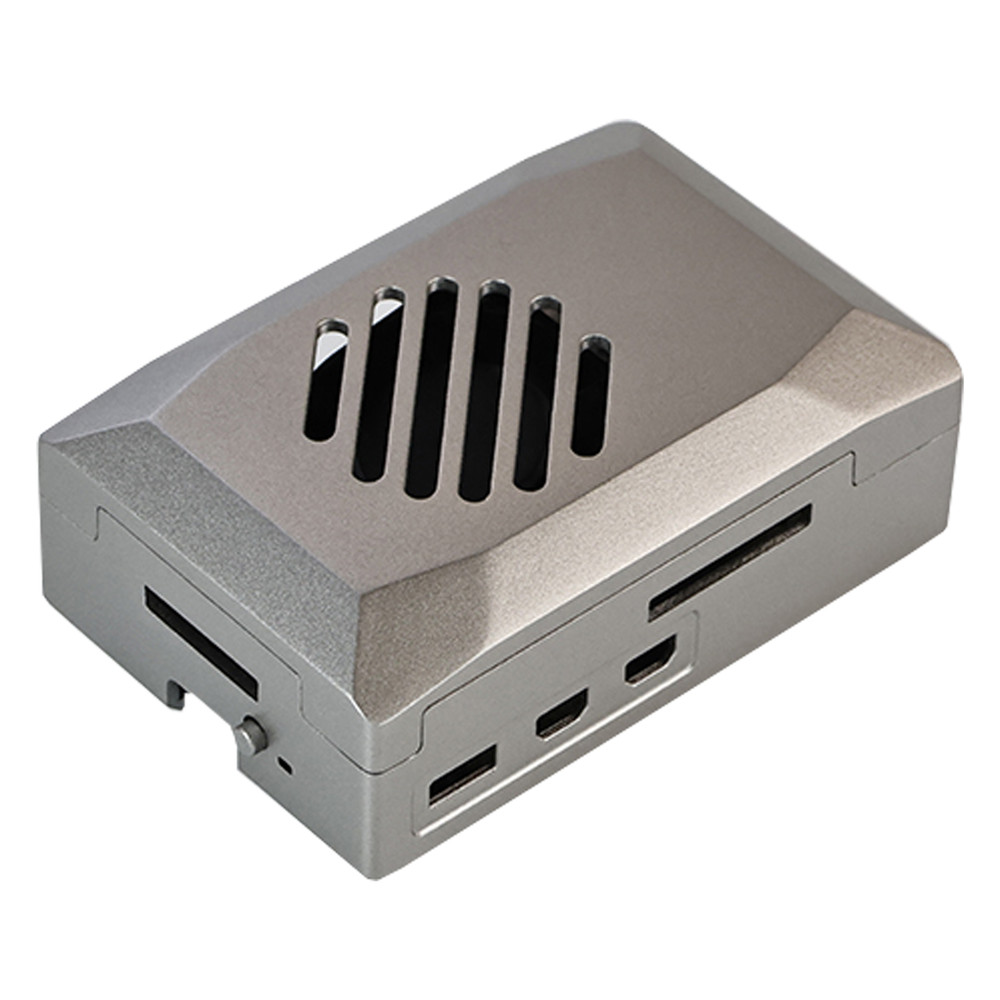

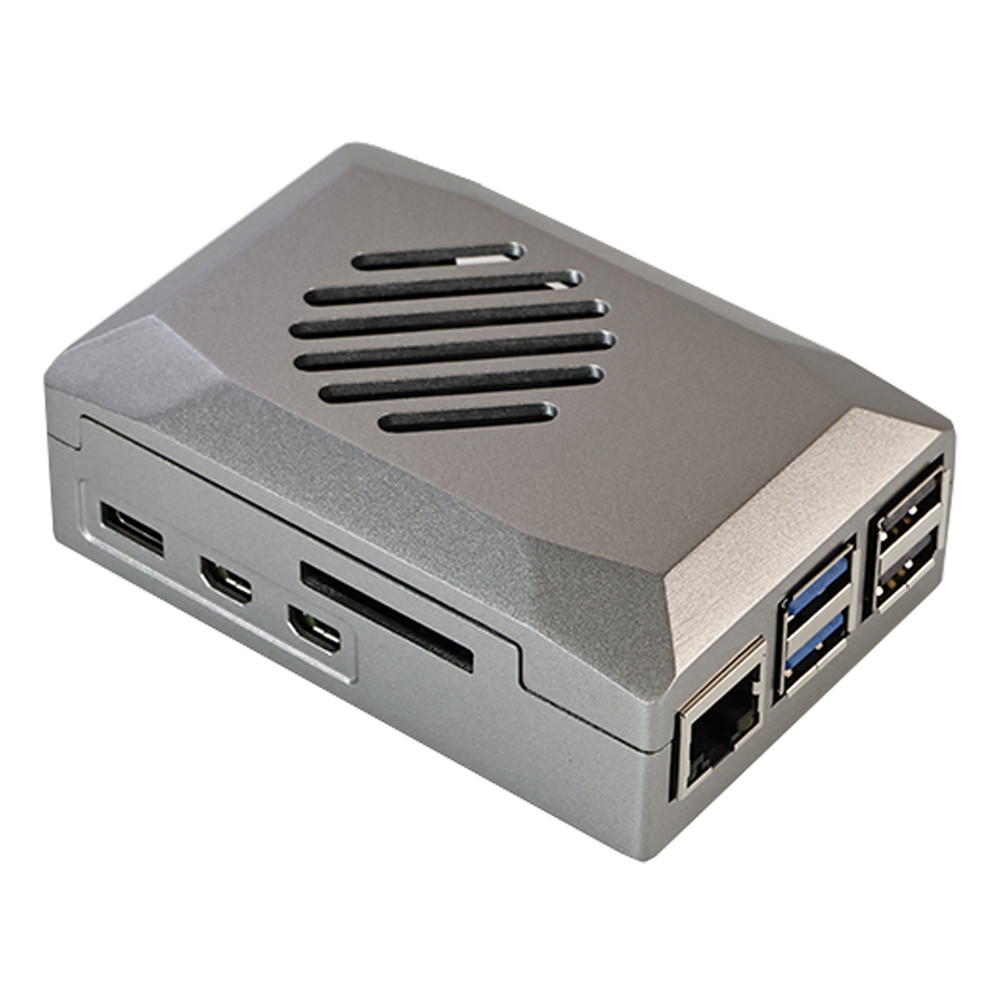

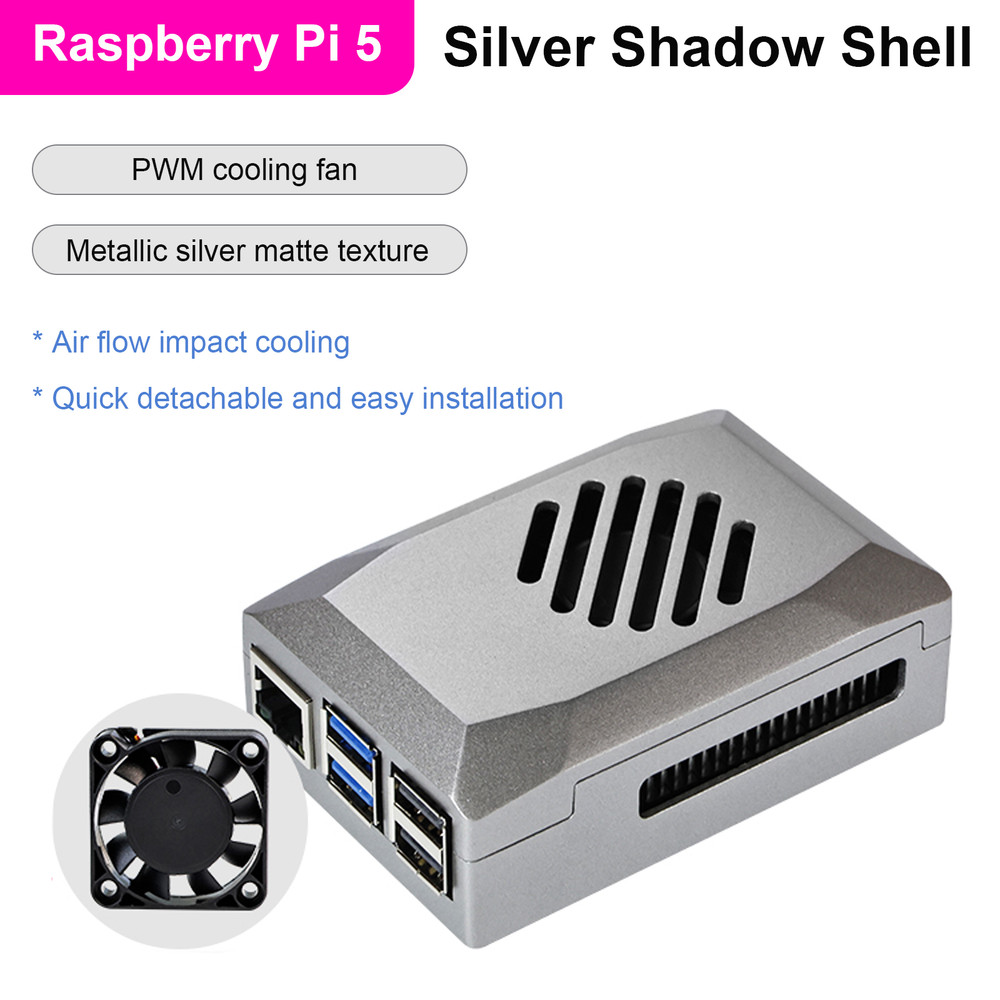

Raspberry Pi 5th generation silver shadow shell Raspberry pi5 protective box ABS material with PWM speed control fan
Description:
The Raspberry Pi 5-Silver Shadow Shell is tailor-made for Rasalbell Pi 5, which can effectively protect the motherboard to avoid external collisions, fast-disassembly design, and installation is simpler. At the same time, with the PWM fan actively controlled heat dissipation, efficient heat dissipation can maintain low noise work, and the heat dissipation performance is better than the official shell of the Raspberry Pi 5.
Features:
1. Easy to use with the power button
Provide a power button to achieve one -button switch without using a card needle.
2.PWM speed regulating fan airflow shock cooling
The shell is equipped with active heat dissipation fans through temperature control and PWM speed adjustment, forming a airflow shock cooling and cooling, which can achieve low noise operation and extend the service life.
3. Tailor -made for the Rasalburra Pi 5
Berbon Pi 5 is not the same as the Rasalbell Pi 4B interface.
4. Pneumatic shock cooling
The shell is equipped with active heat dissipation fans through temperature control and PWM speed adjustment, forming a airflow shock cooling and cooling, which can achieve low noise operation and extend the service life.
5. The official active radiator can be installed
After disassembling the fan, support access to the official active radiator (need to buy separately)
Simple installation of fast -disassembly design£º
Simple installation on the upper lid and disassembly designer
¢Ù Install button
¢Ú Install the raspberries to the shell base and fix it with screws
¢Û Fan connecting raspberry Pi 5 four -shot jst connector
¢Ü Card tightly
Raspberry Pi 5 Silver Shadow Shell Specifications:
Shell material: ABS
Size: 91.5*61*33.92mm
Craftsmanship: Metal sand grain gray paint
Weight: about 51.5g
PWM Cooling Fan Specifications:
Fan size: 40*40*10mm
Interface type: SH1.0-4P
Rated voltage: DC 5V
Number of revolutions: 5000¡À10%rpm
Air volume: 4.8CFM
Noise: 21dBA
Cord length: 5cm
Control: PWM
Rated current: 0.1A Max
Line sequence: red+, blue PWM, black-, yellow FG
Wind pressure: 2.1mmH20
Operating temperature: -10¡ã¡æ~+80¡ãC
Package Include:
1x Top Cover
1x Base
1x PWM Cooling Speed-adjustable Fan
1x Screw Pack
1x Power Button
