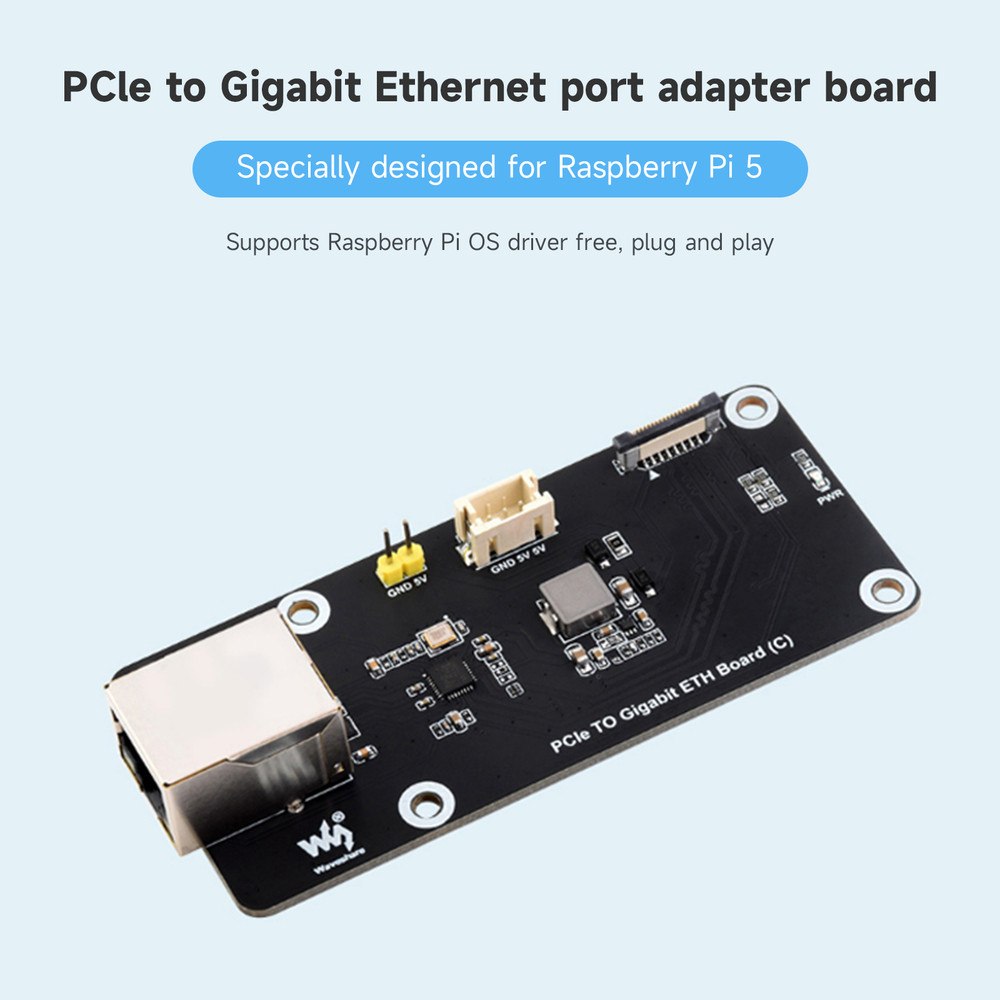

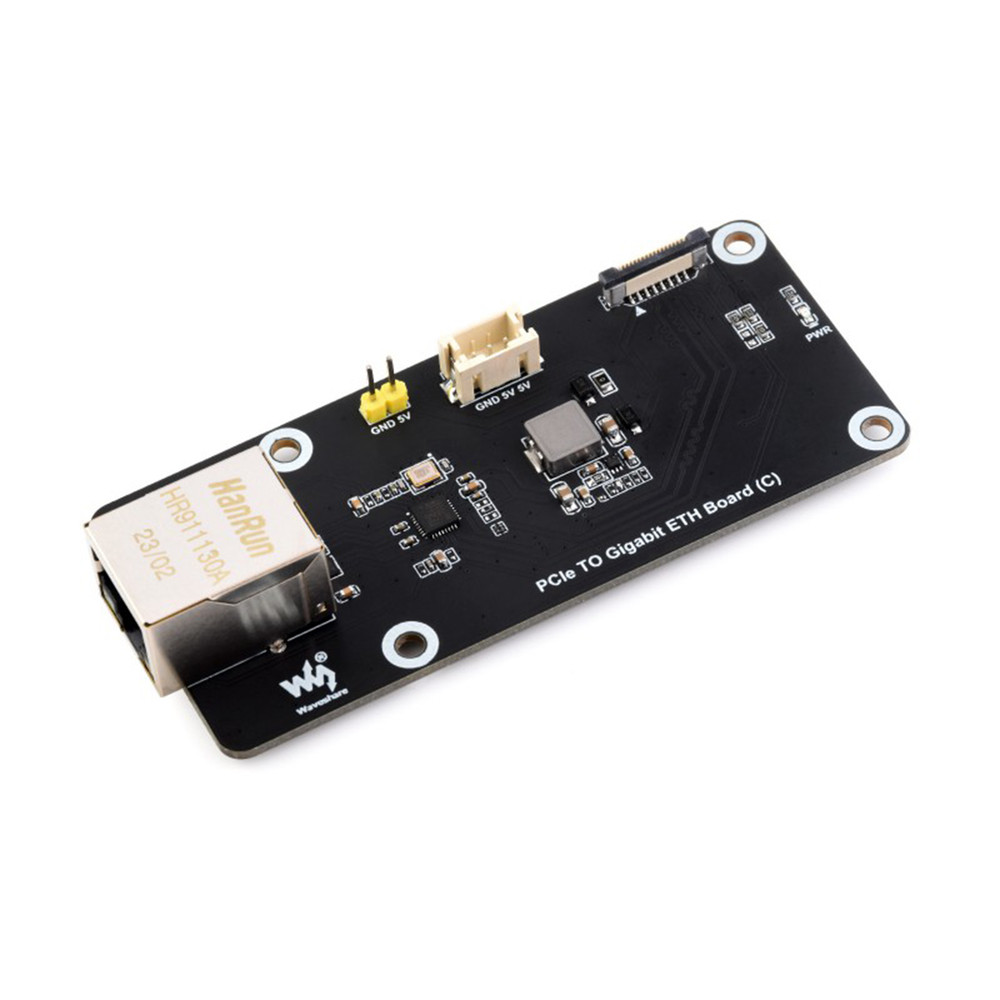

Raspberry Pi 5th generation PCIe to Gigabit Ethernet port adapter board OS driver-free Raspberry pi5 5B expansion board
Features:
PCle to Gigabit Ethernet port adapter board, specially designed for Raspberry Pi5, supports Raspberry Pi OS driver-free, plug and play
PI5 can be connected through 16PIN cable, based on PI5¡¯s 16PIN PCle interface design
High-performance chip, equipped with Realtek RTL8111H original high-performance main control chip, supports Raspberry PiOS driver-free, plug and play
With acrylic transparent support bottom plate, side installation solution is adopted, which does not occupy the space on the top of the motherboard.
Power supply mode, the default is to use PCle cable for power supply
Specifications:
Main control chip: RTL8111H
Network port type: RJ45 Gigabit network port
PICe interface: PICe x1 GEN2
Power supply: 5V
Network standard: 10/100/1000Mbp
Status light:
Gigabit: Green light flashes
100 Mbit/s: Yellow light flashes
Package Included:
1 x PCle TO Gigabit ETH Board (C)
1 x clear acrylic base plate
1 x PH2.0 3PIN cable about 5cm
1 xPCle-Cable-50mm
1 x copper pillar package
