Product Overview

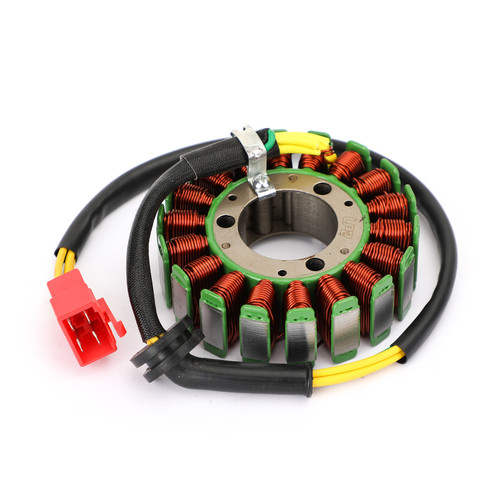

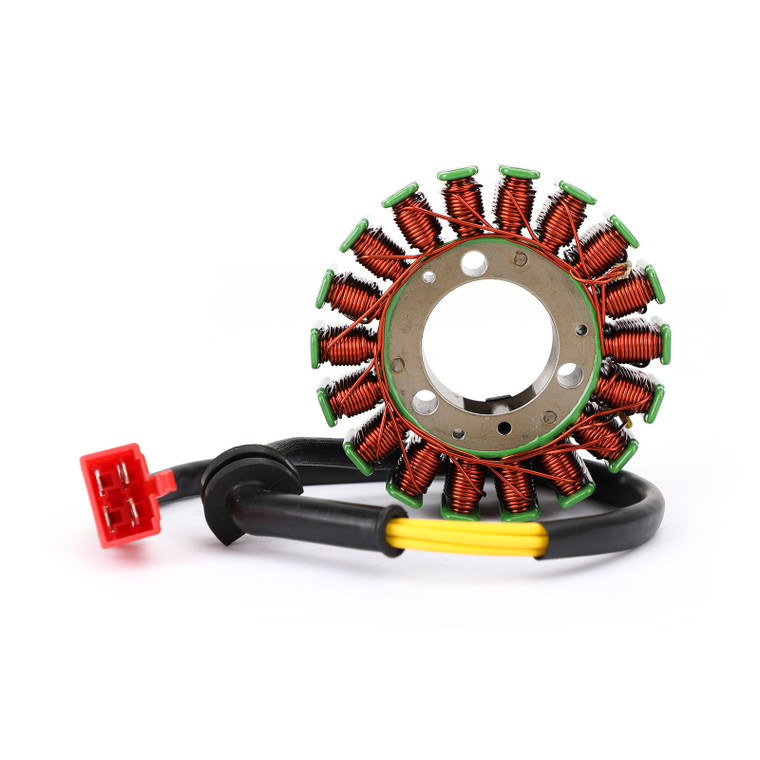

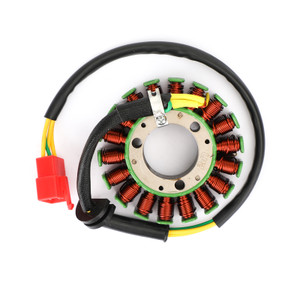

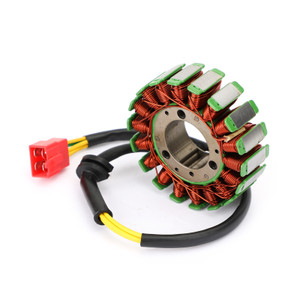

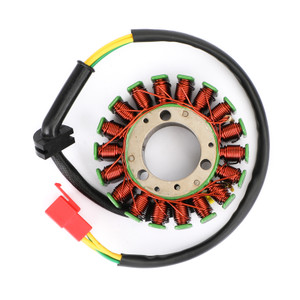

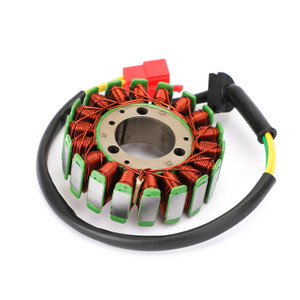

Magneto Generator Engine Stator Coil Fit For Honda NSR250 NSR 250 MC16 MC18 MC21 MC28 1986-1994
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Specifics:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 34.7mm
Exterior diameter : 93mm
Pole's Thickness : 30.6mm
Pole's Width : 10.9mm
Other Specifications :
Number of wires: 4
Number of pins: 4
Number of plugs: 1
Number of fixation holes: 3(+3)
Number of poles: 18
Reference Part Number:
31120-KV3-951
Fitments:
Fit for Honda NSR250R NSR250R SE NSR250R SP
Fit for Honda NSR250 MC16 1986
Fit for Honda NSR250 MC18 1988-1989
Fit for Honda NSR250 MC21 1990-1992
Fit for Honda NSR250RR MC28 1994
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package includes:
1x Generator Stator Coil
Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Specifics:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 34.7mm
Exterior diameter : 93mm
Pole's Thickness : 30.6mm
Pole's Width : 10.9mm
Other Specifications :
Number of wires: 4
Number of pins: 4
Number of plugs: 1
Number of fixation holes: 3(+3)
Number of poles: 18
Reference Part Number:
31120-KV3-951
Fitments:
Fit for Honda NSR250R NSR250R SE NSR250R SP
Fit for Honda NSR250 MC16 1986
Fit for Honda NSR250 MC18 1988-1989
Fit for Honda NSR250 MC21 1990-1992
Fit for Honda NSR250RR MC28 1994
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package includes:
1x Generator Stator Coil
Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
