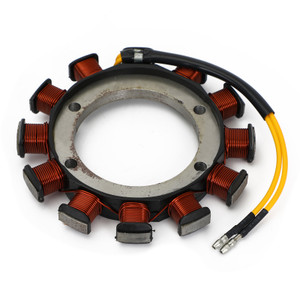

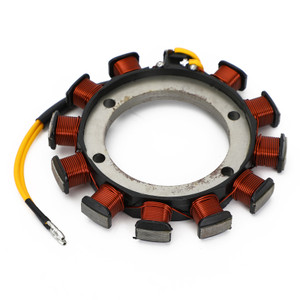

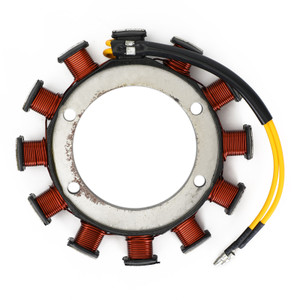

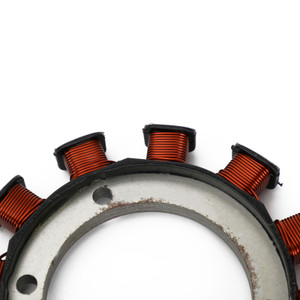

Generator Engine Stator Fit for Kawasaki KAF 300 Mule 500 520 550 1993-2004
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

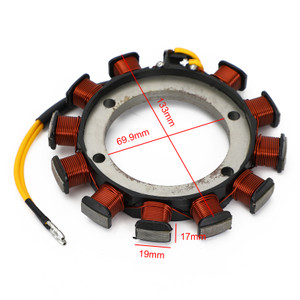

Dimensions :
Interior diameter : 69.9mm
Exterior diameter : 133mm
Pole's Thickness : 17mm
Pole's Width : 19mm
Other Specifications :

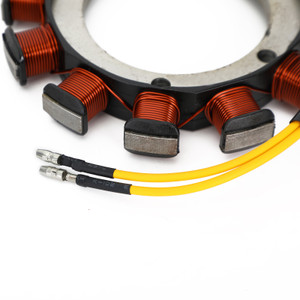

Number of wires: 2
Number of pins: 2
Number of fixation holes: 4
Number of poles: 12
Replacement Part Number:
59031-2097
Fitments:
Fit for Kawasaki KAF300 Mule 500 1993-1996
Fit for Kawasaki KAF300 Mule 520 2000-2001
Fit for Kawasaki KAF300 Mule 550 1997-2004
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
