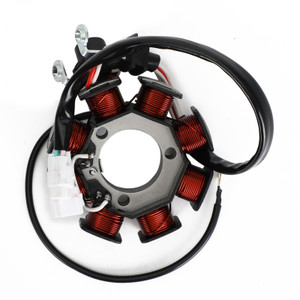

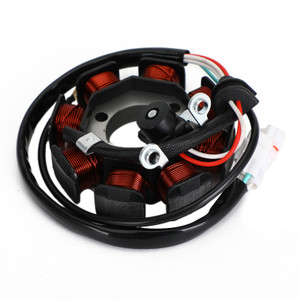

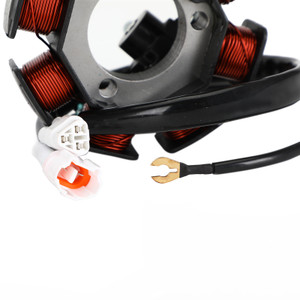

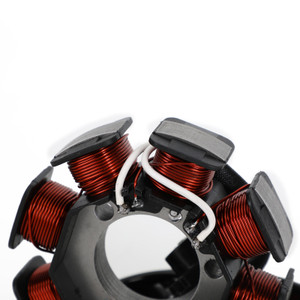

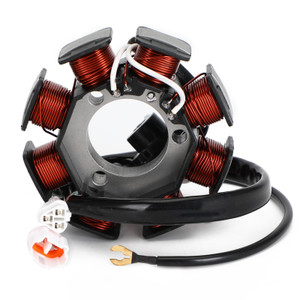

Magneto Generator Engine Stator Coil Fit for Yamaha YFM125R Raptor 125 ATV 2011-2013
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

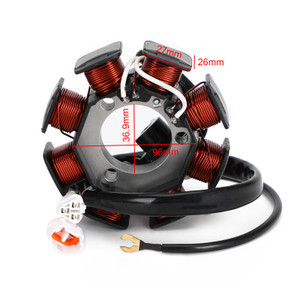

Dimensions :
Interior diameter : 36.9mm
Exterior diameter : 96mm
Pole's Thickness : 27mm
Pole's Width : 26mm
Other Specifications :
Number of wires: 5
Number of pins: 6
Number of plugs: 2(+1)
Number of fixation holes: 3
Number of poles: 8
Replacement Part Number:
2PA-H1410-00
2PA-H1410-01
Fitments:
Fit for Yamaha Raptor 125 YFM125RAL 2011
Fit for Yamaha Raptor 125 YFM125RAW 2011
Fit for Yamaha Raptor 125 YFM125RBL 2012
Fit for Yamaha Raptor 125 YFM125RBW 2012
Fit for Yamaha Raptor 125 YFM125RDL 2013
Fit for Yamaha Raptor 125 YFM125RDW 2013
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 36.9mm
Exterior diameter : 96mm
Pole's Thickness : 27mm
Pole's Width : 26mm
Other Specifications :
Number of wires: 5
Number of pins: 6
Number of plugs: 2(+1)
Number of fixation holes: 3
Number of poles: 8
Replacement Part Number:
2PA-H1410-00
2PA-H1410-01
Fitments:
Fit for Yamaha Raptor 125 YFM125RAL 2011
Fit for Yamaha Raptor 125 YFM125RAW 2011
Fit for Yamaha Raptor 125 YFM125RBL 2012
Fit for Yamaha Raptor 125 YFM125RBW 2012
Fit for Yamaha Raptor 125 YFM125RDL 2013
Fit for Yamaha Raptor 125 YFM125RDW 2013
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Delivery:
Free Shipping
Delivery Time:3-10 Working Days
Warranty:
Warranty Period:1 Years
Return:Goods can be returned within 60 days of receipt
24-Hour Support:Customer service throughout the day
