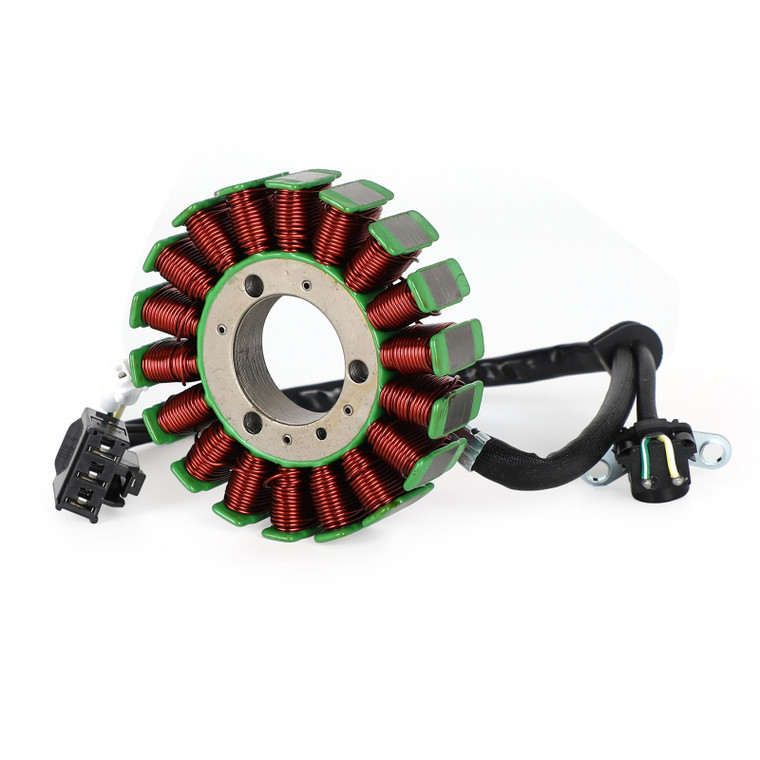

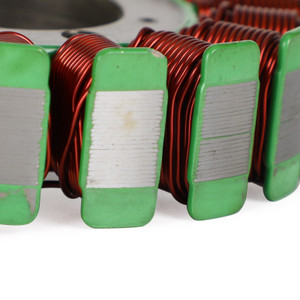

Magneto Generator Stator Fit for Kawasaki Z400 Ninja 400R 18-20 Versys-X 300 300A 17-20
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 38mm
Exterior diameter : 107mm
Pole's Thickness : 27.5mm
Pole's Width : 13mm
Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3
Number of poles: 18
Replacement Part Number:
21003-0178
21003-0175
Fitments:
Fit for Kawasaki ER400 Z400 2019-2020
Fit for Kawasaki EX400 Ninja 400R ABS 2018-2020
Fit for Kawasaki KLE300 Versys-x 300 2017-2020
Fit for Kawasaki KLE300 ABS Versys-x 300 2017-2020
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
