Product Overview
Magneto Generator Engine Stator Coil For Sea-Doo 951 LRV RX XP GTX 3D DI 950 cc 2000-2007
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Interchange Part Number:290888650,290888651,290888652,420888652,420888656

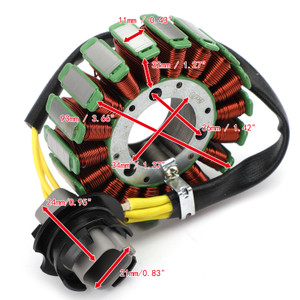

Dimensions :
Interior diameter : 34mm / 1.37"
Exterior diameter : 93mm / 3.66"
Pole's Thickness : 32mm / 1.27"
Pole's Width : 11mm / 0.43"
Other specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Plug's Length:24mm/0.95"
Plug's Width:21mm/0.83"
Number of fixation holes: 3(+3)
Number of poles: 18
Fixation holes length: 36mm / 1.42"
FITMENT:
For Sea-Doo 3D DI 950 cc 2006-2007
For Sea-Doo 951 GTX DI 2000-2003
For Sea-Doo 951 LRV DI 2002-2003
For Sea-Doo 951 RX DI 2000-2003
For Sea-Doo 951 RX DI LE 2002
For Sea-Doo 951 XP DI 2003-2004
For Sea-Doo Sportster LE 950 cc 130 HP 2004-2006
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
