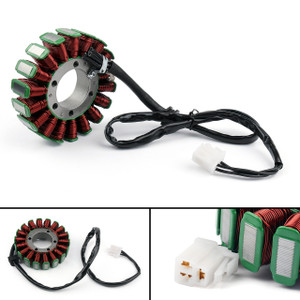

104mm Magneto Generator Stator Fit for Speed Triple 1050 2005-2010 Speed Triple 955 Sprint RS RT 2000-2004
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Connector included.
Rubber grommet included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil
Dimensions:
Exterior Diameter: 104mm
Interior Diameter: 42mm
other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18

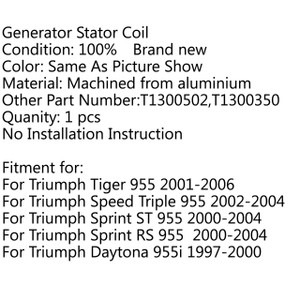

Replacement Part Number:
T1300502
T1300610
Fits Model/Year:
T1300502
Fit for Tiger 955i 2001-2003 (From VIN 124106 to VIN 198874)
Fit for Tiger 955i 2004-2006 (From VIN 198875 to VIN 287503)
Fit for Sprint RS 955 2002-2004 (From VIN 139277)
Fit for Sprint ST 955 2002-2004 (From VIN 139277 to VIN 208166)
Fit for Daytona 955i 1997-2000
Fit for Speed Triple 955 2000-2004 (From VIN 141872 to VIN 210444)
T1300610
> Eng No 356142
ENG No 183487 >
Fit for Speed Triple 1050 2005-2010 (From VIN 210445 to VIN 461331)
Some models have multiple stators. Please check out the part number and size before purchasing.
This part will only fit Speed Triple with a VIN BETWEEN 141872 and 210444 and has a engine number HIGHER than 183487 or a VIN BETWEEN 210445 and 461331 and an engine number LOWER than 356142.
The stator exterior diameter is 104mm, if your's 115mm, that will NOT fit.
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x 104mm Stator Generator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
