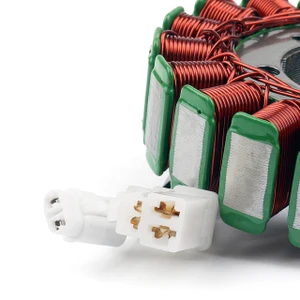

115mm Magneto Generator Stator Fit for Daytona 675 / 675 SE / Street Triple 675 / 675 R 2006-2020
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil
Dimensions:
Exterior Diameter: 115mm
Interior Diameter: 42mm
other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 2 + 3
Number of poles: 18
Replacement Part Number:
T1300039
Fits Model/Year:
This stator replaces only OEM # T1300039, and was used on VIN #'s up to 564947.
Fit for Daytona 675 ABS 2013-2014
Fit for Daytona 675R 2011-2012
Fit for Daytona 675 2006-2008 (to VIN 381274)
Fit for Daytona 675 2009-2020 (From VIN 381275 to VIN 564947)
Fit for Daytona 675 SE 2008-2011
Fit for Street Triple 675 2008-2017 (To VIN 560477)
This part will only fit Street triple with a VIN LOWER than 560477.
Fit for Street Triple 675R 2009-2017 (To VIN 560476)
This part will only fit Street triple R with a VIN LOWER than 560476.
There are multiple stators used on the 2006-2020 Daytona 675 / Speed Triple 675.
Please check your VIN number to be sure of correct fitment. You can also compare your original stator connectors to the our pictures, they must be the same.
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x 115mm Stator Generator
Installation:
Before installing your new stator:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
Note:
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
