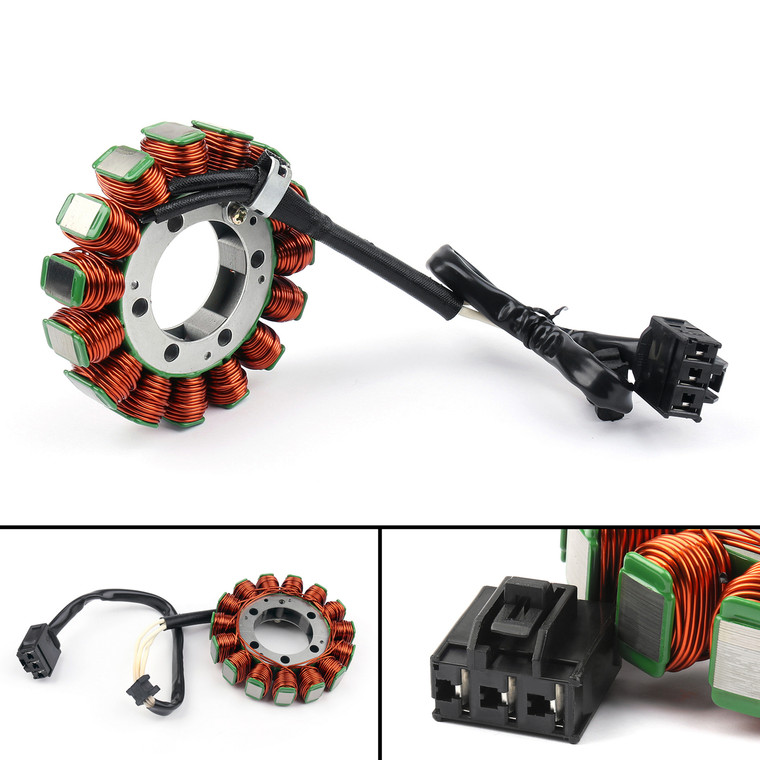

Magneto Generator Stator Fit for Aprilia RSV4 1000 RR RF R Factory 2011-2017 2D000049
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Connector included.
Rubber grommet included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil
Dimensions:
Exterior Diameter: 105mm
Interior Diameter: 42mm
other specifications:
Number of wires: 3

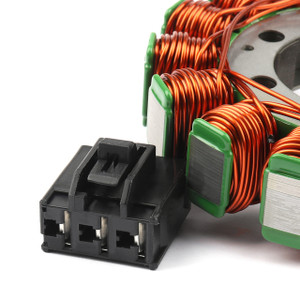

Number of plugs: 1
Number of pins: 3
Number of poles: 15
Replacement Part Number:
2D000049
Fits Make/Model/Year:
Fit for Aprilia RSV4 1000 Factory 2011-2017
Fit for Aprilia RSV4 R 1000 2011-2015
Fit for Aprilia RSV4 RF 1000 2015-2017
Fit for Aprilia RSV4 RR 1000 2016-2017
Fit for Aprilia Tuono V4 1000 2012-2015
Fit for Aprilia Tuono 1100 Factory 2016-2017
Fit for Aprilia Tuono 1100 RR 2016-2017
Fit for Aprilia RSV4 1000 RR E4 ABS 2019-2020
Fit for Aprilia RSV4 1100 Racing Factory E4 ABS 2019
Fit for Aprilia Tuono V4 Factory 1100 E4 Superpole ABS 2019-2020
Fit for Aprilia RSV4 1100 Racing Factory E4 ABS 2020-2021
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Stator Generator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
