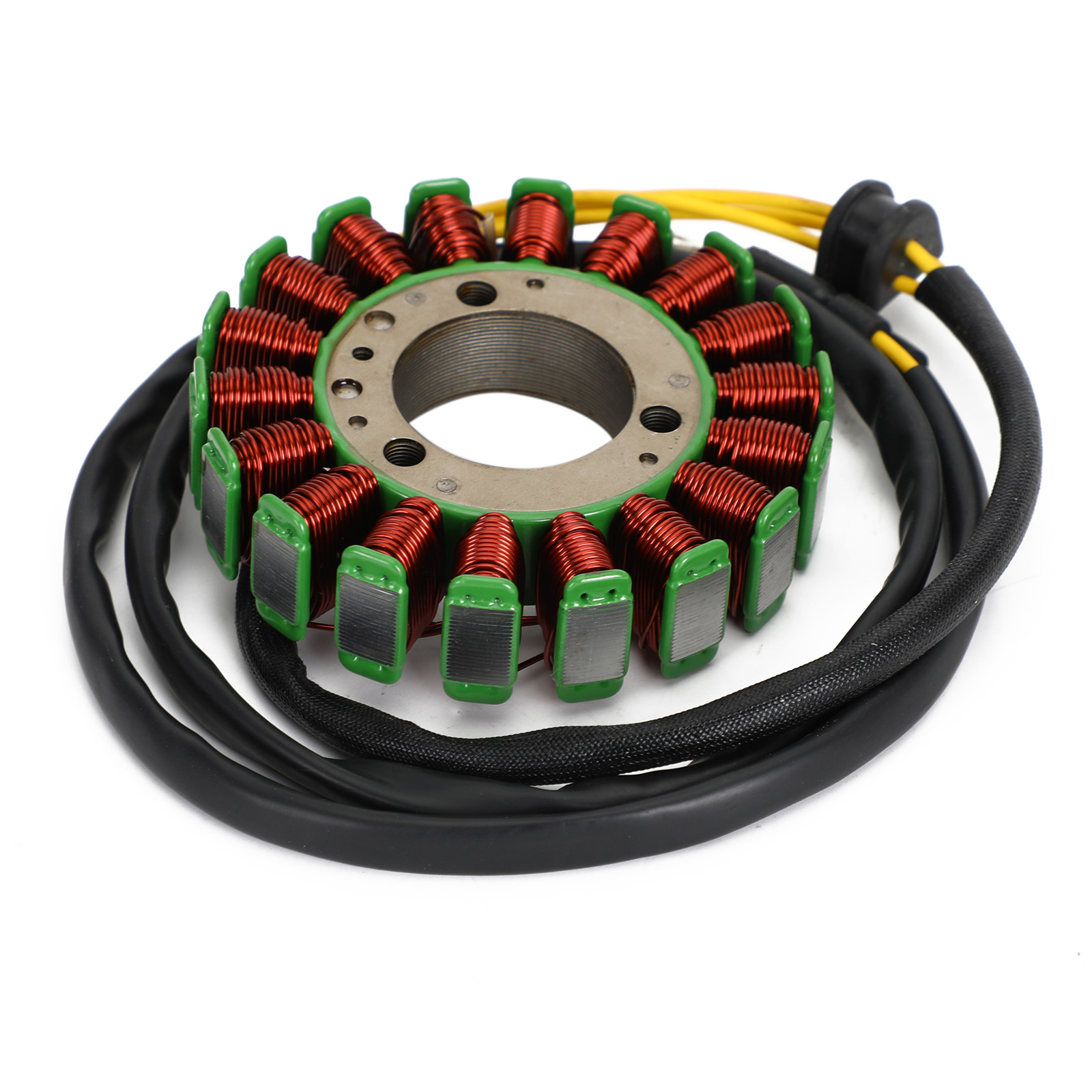

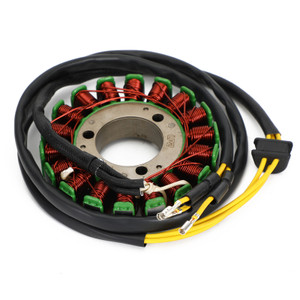

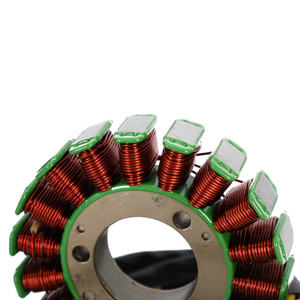

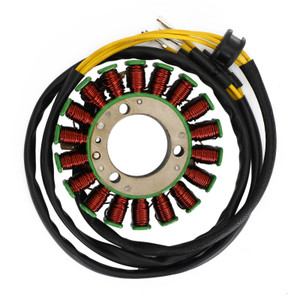

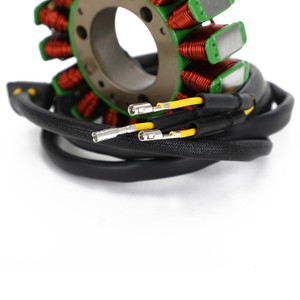

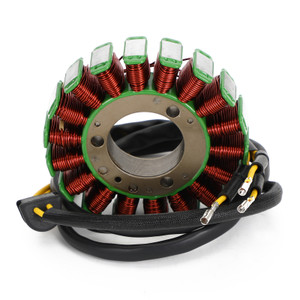

Magneto Generator Engine Stator Coil Fit for Suzuki GS GSX 750 1000 1100 1974-1986
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 37mm
Exterior diameter : 102mm
Pole's Thickness : 26mm
Pole's Width : 11.8mm
Other Specifications :
Number of wires: 3
Number of pins: 3
Number of fixation holes: 3
Number of poles: 18
Replacement Part Number:
31401-09310
31401-09300
31401-49110
31400-49210
31401-49210
31400-49310
31401-49010
31401-49011
31401-49411
31401-49310
31401-49410
31401-49420
Fitments:
Fit for Suzuki GS750 GS750E 1983
Fit for Suzuki GS750 GS750ES 1983
Fit for Suzuki GSX750 GSX750EE 1984
Fit for Suzuki GSX750 GSX750EFE 1984
Fit for Suzuki GSX750 GSX750ESD 1983
Fit for Suzuki GSX750 GSX750ESE 1984
Fit for Suzuki GS1000 Katana 1000 1980
Fit for Suzuki GS1000 1978-1980
Fit for Suzuki GS1000 GS1000L 1979
Fit for Suzuki GS1000 GS1000C 1978-1979
Fit for Suzuki GS1000 GS1000EC 1978-1979
Fit for Suzuki GS1000 GS1000EN 1978-1979/1992
Fit for Suzuki GS1000 GS1000E 1980
Fit for Suzuki GS1000 GS1000G 1980-1981
Fit for Suzuki GS1000 GS1000GL 1980-1981
Fit for Suzuki GS1000 GS1000HC 1978
Fit for Suzuki GS1000 GS1000HN 1992
Fit for Suzuki GS1000 GS1000N 1978-1979/1992
Fit for Suzuki GS1000 GS1000S S 1979-1980/1995
Fit for Suzuki GS1000 GS1000ET 1996
Fit for Suzuki GS1000 GS1000HT 1996
Fit for Suzuki GS1000 GS1000T 1996
Fit for Suzuki GS1000 GS1000GT 1996
Fit for Suzuki GS1000 GS1000GX 1999
Fit for Suzuki GS1100 GS1100E 1980 1981 1982 1983
Fit for Suzuki GS1100 GS1100ES 1982 1983
Fit for Suzuki GS1100 GS1100 L 1980
Fit for Suzuki GS1100 GS1100G 1980 1981 1982 1983 1984
Fit for Suzuki GS1100 GS1100GK 1982 1983 1984
Fit for Suzuki GS1100 GS1100GKZ 1982
Fit for Suzuki GS1100 GS1100GK2 2002
Fit for Suzuki GS1100 GS1100GKD 1983
Fit for Suzuki GS1100 GS1100GD 1983
Fit for Suzuki GS1100 GS1100GZ 1982
Fit for Suzuki GS1100 GS1100GE 1984
Fit for Suzuki GS1100 GS1100GF 1985
Fit for Suzuki GS1100 GS1100GG 1986
Fit for Suzuki GS1100 GS1100GL 1982 1983
Fit for Suzuki GSX1100 GSX1100S GU76A
Fit for Suzuki GSX1100 GSX1100D 1983
Fit for Suzuki GSX1100 GSX1100ED 1983
Fit for Suzuki GSX1100 GSX1100ESD 1983
Fit for Suzuki GSX1100 GSX1100EXD 1983
Fit for Suzuki GSX1100 GSX1100EZ 1982
Fit for Suzuki GSX1100 GSX1100XD 1983
Fit for Suzuki GSX1100 GSX1100Z 1982
Fit for Suzuki GSX1100 GSX1100ET 1980
Fit for Suzuki GSX1100 GSX1100EX 1981
Fit for Suzuki GSX1100 GSX1100T 1980
Fit for Suzuki GSX1100 GSX1100X 1981
Fit for Suzuki XN85 XN85D 1983
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
