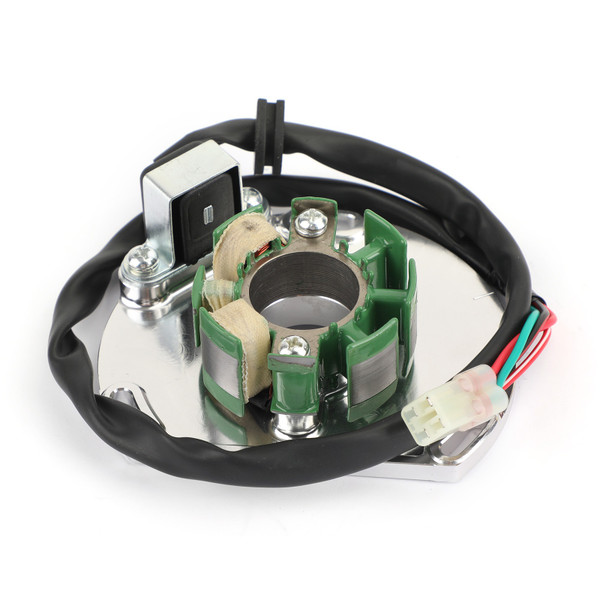

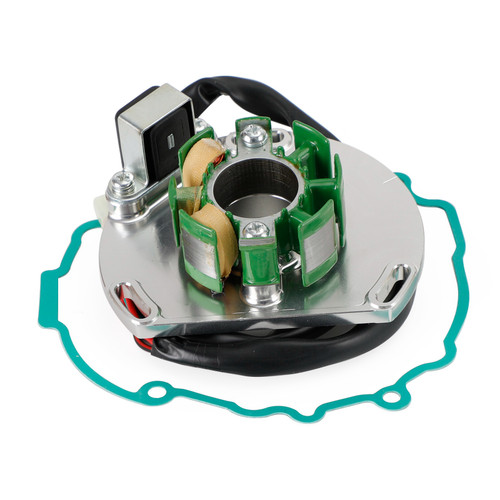

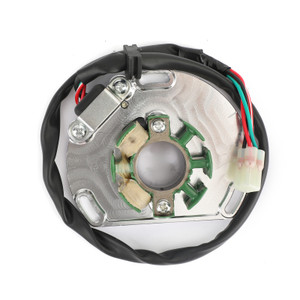

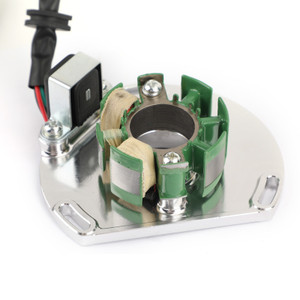

Magneto Generator Engine Stator 2K-1 Fit For Off-Road 125/144/150/250 SX SXS TC 2004-2015 54839004000
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Other Specifications :
Number of wires: 4
Number of pins: 4
Number of plugs: 1
Number of fixation holes: 3
Number of poles: 6(+2)
PART NUMBER(S):
54839004000
Fitments:
THESE MODELS USE 3 DIFFERENT TYPE OF STATORS.
2K-1 (IGNITION ONLY), 2K-2 (AC ONLY) & 2K-3 (FULL DC).
THIS ONE IS THE 2K-1 (IGNITION ONLY) VERSION.
BEFORE BUYING PLEASE MAKE SURE YOUR BIKE USES THE 2K-1 (IGNITION ONLY) VERSION.
Fit for Off-Road 125/144/150/250 2k-1 Models
Fit for Off-Road 125 SX 2006-2015
Fit for Off-Road 125 SXS 2004-2008
Fit for Off-Road 125 SX Tyla Rattray 2005
Fit for Off-Road 144 SX 2007-2008
Fit for Off-Road 150 SX 2009-2015
Fit for Off-Road 250 SX 2006-2016
Fit for Off-Road 250 SXS 2004-2005/2007
Fit for Husqvarna TC125 2014-2015
Fit for Husqvarna TC125 HQV 2014
Fit for Husqvarna TC250 2014-2016
Fit for Husqvarna TC250 HQV 2014
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
