Generator Stator Fit for Suzuki GSX 750 E 1983-1986 GSX 1100 E / GS 1150 E 1984-1986
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

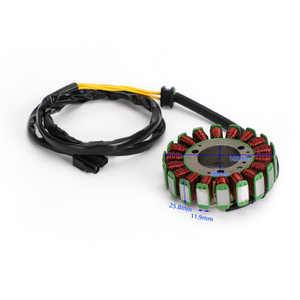

Dimensions :
Interior diameter : 38mm
Exterior diameter : 102mm
Pole's Thickness : 25.8mm
Pole's Width : 11.9mm
Other Specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 3
Number of fixation holes: 3
Number of poles: 18
Replacement Part Number:
31401-08A00
31401-00A00
Fitments:
Fit for Suzuki GSX750 GSX750SE 1984
Fit for Suzuki GSX750 GSX750EE 1984
Fit for Suzuki GSX750 GSX750EF 1985
Fit for Suzuki GSX750 GSX750EFE 1984
Fit for Suzuki GSX750 GSX750EFF 1985
Fit for Suzuki GSX750 GSX750ESD 1983
Fit for Suzuki GSX750 GSX750ESE 1984
Fit for Suzuki GSX750 GSX750ESF 1985
Fit for Suzuki GSX750 GSX750ESG 1986
Fit for Suzuki GSX700 GS700E 1984-1985
Fit for Suzuki GSX700 GS700ES 1984-1985
Fit for Suzuki GSX1100 GSX1100EE 1984
Fit for Suzuki GSX1100 GSX1100EF 1985
Fit for Suzuki GSX1100 GSX1100EG 1986
Fit for Suzuki GSX1100 GSX1100EEF 1985
Fit for Suzuki GSX1100 GSX1100EFE 1984
Fit for Suzuki GSX1100 GSX1100EFF 1985
Fit for Suzuki GSX1100 GSX1100EFG 1986
Fit for Suzuki GSX1100 GSX1100ESE 1984
Fit for Suzuki GSX1100 GSX1100ESF 1985
Fit for Suzuki GSX1100 GSX1100ESG 1986
Fit for Suzuki GS1150 GS1150ESF 1985
Fit for Suzuki GS1150 GS1150EFF 1985
Fit for Suzuki GS1150 GS1150EFG 1986
Fit for Suzuki GS1150 GS1150EF 1984-1986
Fit for Suzuki GS1150 GS1150EF2 1984-1986
Fit for Suzuki GS1150 GS1150EG 1984-1986
Fit for Suzuki GS1150 GS1150ES3 1984-1986
Fit for Suzuki GS1150 GS1150ESE 1984-1986
Fit for Suzuki GS1150 GS1150ESF 1984-1986
Fit for Suzuki GS1150 GS1150ESG 1984-1986
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 38mm
Exterior diameter : 102mm
Pole's Thickness : 25.8mm
Pole's Width : 11.9mm
Other Specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 3
Number of fixation holes: 3
Number of poles: 18
Replacement Part Number:
31401-08A00
31401-00A00
Fitments:
Fit for Suzuki GSX750 GSX750SE 1984
Fit for Suzuki GSX750 GSX750EE 1984
Fit for Suzuki GSX750 GSX750EF 1985
Fit for Suzuki GSX750 GSX750EFE 1984
Fit for Suzuki GSX750 GSX750EFF 1985
Fit for Suzuki GSX750 GSX750ESD 1983
Fit for Suzuki GSX750 GSX750ESE 1984
Fit for Suzuki GSX750 GSX750ESF 1985
Fit for Suzuki GSX750 GSX750ESG 1986
Fit for Suzuki GSX700 GS700E 1984-1985
Fit for Suzuki GSX700 GS700ES 1984-1985
Fit for Suzuki GSX1100 GSX1100EE 1984
Fit for Suzuki GSX1100 GSX1100EF 1985
Fit for Suzuki GSX1100 GSX1100EG 1986
Fit for Suzuki GSX1100 GSX1100EEF 1985
Fit for Suzuki GSX1100 GSX1100EFE 1984
Fit for Suzuki GSX1100 GSX1100EFF 1985
Fit for Suzuki GSX1100 GSX1100EFG 1986
Fit for Suzuki GSX1100 GSX1100ESE 1984
Fit for Suzuki GSX1100 GSX1100ESF 1985
Fit for Suzuki GSX1100 GSX1100ESG 1986
Fit for Suzuki GS1150 GS1150ESF 1985
Fit for Suzuki GS1150 GS1150EFF 1985
Fit for Suzuki GS1150 GS1150EFG 1986
Fit for Suzuki GS1150 GS1150EF 1984-1986
Fit for Suzuki GS1150 GS1150EF2 1984-1986
Fit for Suzuki GS1150 GS1150EG 1984-1986
Fit for Suzuki GS1150 GS1150ES3 1984-1986
Fit for Suzuki GS1150 GS1150ESE 1984-1986
Fit for Suzuki GS1150 GS1150ESF 1984-1986
Fit for Suzuki GS1150 GS1150ESG 1984-1986
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
