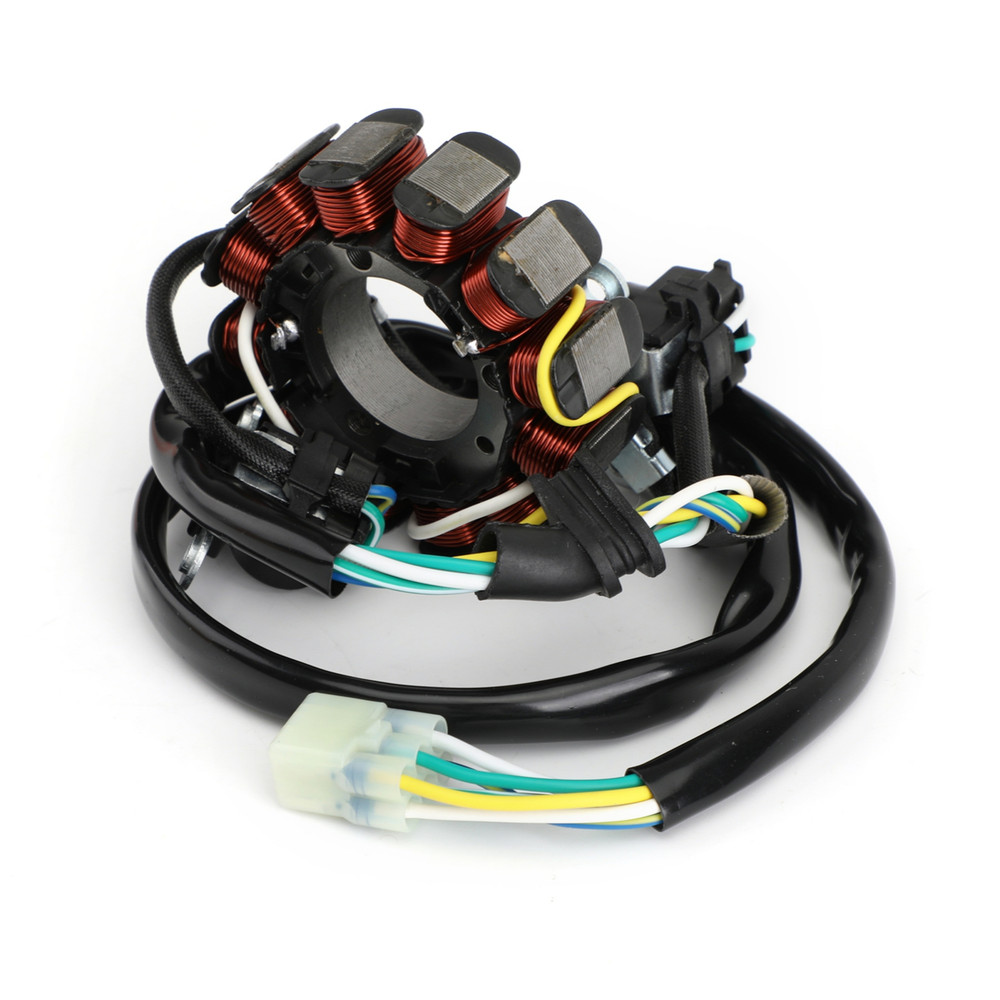

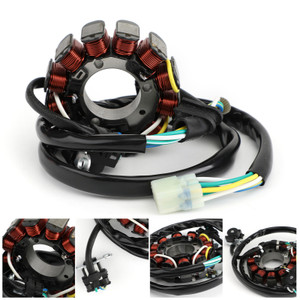

Stator Magneto Generator For Honda CRF 450 R CRF450R 2009 31120-MEN-A31

Engine Ignition Stator Alternator Fit for Honda CRF450R 2009 Repl. # 31120-MEN-A31

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Generator

Dimensions :
Exterior diameter : 76.5mm / 3.01" inches
Interior diameter : 31.8mm / 1.25" inches
Pole's Thickness : 24.8mm / 0.97" inches
Pole's Width : 13.4mm / 0.52" inches

Other Specifications :
Number of wires: 6
Number of pins: 6
Number of plugs: 1
Number of fixation holes: 3
Number of poles: 12

Replacement Part Number:
31120-MEN-A31

Fits Make/Year/Model:
Fit for Honda 2009 CRF450R A - CRF450R

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package included:
1x Generator Stator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

Battery condition is extremely important. No stator can work correctly with a bad or weak battery.
Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
