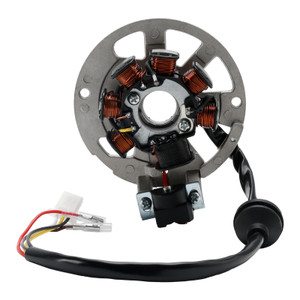

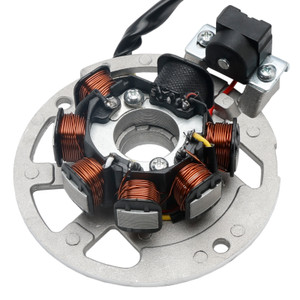

7 Poles Ignition stator with Base Assembly 5-Wire Fit for CPI Keeway RY6 ATU Explorer Race GT 50, Spin GE 50
Features:
Easy fitting - saves time, highly cost effective.
High temperature chemical resistant cable harness.
Precision die cast base plate (where fitted).
Super reliable stator unit.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
Ignition Only.
Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator
other specifications:
Number of wires: 5
Number of plugs: 1 (+2)
Number of pins: 2 + 3
Number of fixation holes: 2
Number of poles: 7
Please compare the number of pins and plugs with the old part before purchasing.
Replacement Part Number:
35560-NAF-00
34310G02F000
31120151-000
AEO-31120151-000
31120-116-000
34310G02F000
CQJ-34310G02F000
Fits Make/Model:
35560-NAF-00
Fit for Explorer ATV Bullet 50
Fit for Explorer ATV Protector 50
Fit for SMC ATV Mini Ram 50 / SMC Grizzly 50
Fit for SMC ATV Urban 50
Fit for SMC ATV Ares 50
34310G02F000
Fit for STELS ATV 50
31120151-000
AEO-31120151-000
Fit for Aeon ATV Cobra 50 2001-2003
Fit for Aeon ATV Cobra 50 ab 2007
Fit for Aeon ATV Cobra 100
Fit for Aeon ATV Revo 50
Fit for Aeon ATV Revo 100
Fit for Aeon ATV Revo 50 W
Fit for Aeon ATV Revo 100 W
Fit for Aeon ATV Minikolt 50
Fit for GOES ATV GOES 50s
31120-116-000
Fit for Adly GTA 50
Fit for Adly GTA 50 Mofa
Fit for Adly Silverfox 50 ab 06
Fit for Adly Noble 50
Fit for Adly Panther 50
Fit for Adly Airtec 50 AC
Fit for Adly Airtec 50 LC
Fit for Adly Thunder Bike 50
Fit for Adly ATV Supercross 50 XXL LC 2010-2012
Fit for Adly ATV Supercross 50 XXL AC 2008-2010
Fit for Adly ATV Supercross 50 XXL AC 2010-2011
Fit for Adly ATV 50 V ab 2005
Fit for Adly ATV 50 RS XXL
Fit for Adly ATV SupeRCross 50 XXL LC 09 - 10
Fit for Adly ATV 50 II Utility XXL AC 08-10
Fit for Adly ATV 50 RS XXL LC
Fit for Adly ATV 50 RS XXL AC
Fit for E-Ton ATV Draco 50
Fit for E-Ton ATV Tornado 50
Fit for E-Ton RXL-50 Viper 50
Fit for E-Ton RXL-50M Viper 50M
Fit for E-Ton RXL-70 VIPER
Fit for E-Ton RXL-90 Viper 90
Fit for E-Ton RXL-90R Viper 90R
34310G02F000
CQJ-34310G02F000
Fit for Keeway Arn 50
Fit for Keeway Easy 50
Fit for Keeway F-Act 50
Fit for Keeway F-Act 50 NKD Naked
Fit for Keeway F-Act 50 Racing SP 2009
Fit for Keeway Flash 50
Fit for Keeway Focus 50 45 km/h
Fit for Keeway Goccia 50
Fit for Keeway Hacker 50
Fit for Keeway Hurricane 50
Fit for Keeway Matrix 50 2008 V1. V2
Fit for Keeway Matrix 50 SP
Fit for Keeway Matrix 50 SP 2009 V4
Fit for Keeway Pixel 50
Fit for Keeway QJ Hurricane Easy 50
Fit for Keeway RY6 50 45 km/h
Fit for Keeway RY8 50
Fit for Keeway RY8 50 EVO
Fit for Keeway RY8 50 Racing
Fit for Keeway RY8 50 SP
Fit for Keeway Swan 50
Fit for Keeway Venus 50
Fit for Kreidler Drive 50
Fit for CPI Hussar 2001
Fit for CPI Hussar SL 2002
Fit for CPI Popcorn 2001
Fit for CPI Popcorn SL 2002
Fit for CPI Popcorn FL 2002
Fit for CPI Bingo Tennesse 50 Euro
Fit for CPI Aragon 50
Fit for CPI Aragon 50 GP
Fit for CPI Formula R 50
Fit for CPI FREAKY
Fit for CPI OLIVER 50 CITY
Fit for CPI Oliver 50
Fit for CPI Oliver 50 Sport
Fit for MBK Evolis 50
Fit for MBK Fizz 50
Fit for MBK Flipper 50
Fit for MBK Forte 50 25 km/h
Fit for MBK Forte 50 50 km/h
Fit for MBK Mach R RR
Fit for MBK Nitro 50 Assistance
Fit for MBK Nitro 50 Assistance 50 km/h
Fit for MBK Nitro 50 Jaguar 45 km/h
Fit for MBK Nitro 50 Jaguar 50 km/h
Fit for MBK Nitro 50 KAT
Fit for MBK Nitro 50 KAT Stage 2
Fit for MBK Ovetto 50
Fit for MBK Ovetto 50 45 km/h
Fit for MBK Ovetto 50 50 km/h
Fit for MBK Ovetto 50 KAT
Fit for MBK Sorriso 50
Fit for MBK Target 50
Fit for Benelli 491 50 AC GT
Fit for Benelli 491 50 LC GP
Fit for Benelli 491 50 LC
Fit for Benelli 491 50 LC RR
Fit for Benelli 491 50 LC SP
Fit for Benelli 491 LC Racing
Fit for Benelli 491 LC Sport
Fit for Benelli 491 LC Superbike
Fit for Benelli 491 ST Rage SBK
Fit for Benelli 49X Quattronove X 50
Fit for Benelli K2 50 AC
Fit for Benelli K2 50 AC 03
Fit for Benelli K2 50 AC
Fit for Benelli K2 50 LC 03
Fit for Benelli K2 50 LC
Fit for Benelli Naked 50 AC 03
Fit for Benelli Naked 50 AC
Fit for Benelli Pepe 50
Fit for Benelli Pepe 50 LX
Fit for Beta EIKON 50
Beta TEMPO 50 13 Zoll
Beta TEMPO 50 16 Zoll
Beta ARK 50
Please check and see if your stator pole's number as same as our and your connectors and harness looks like the one in the photo before purchasing.
Please compare with your old part to make sure this is what you want.
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Stator Base Assy
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
