Product Overview
TTL to RS485 Electrical Isolation Module DIN Rail Serial Converter Stable Communication 600W Lightning Protection

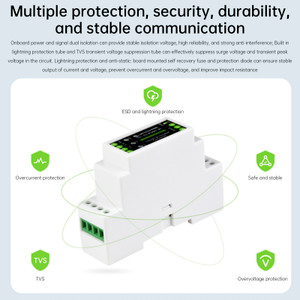

Features:
1. Compatible with TTL/RS485 standard, it can convert TTL signals into differential RS485 signals, half-duplex communication
2. Compatible with 3.3V ~ 5V TTL signal level, power supply terminal has anti-reverse and anti-overvoltage circuit
3. On-board integrated power supply isolation can provide stable isolation voltage, and the isolation terminal does not require additional power supply
4. On-board integrated digital isolation, which can perform signal isolation, with high reliability, strong anti-interference and low power consumption.
5. On-board TVS (Transitute Voltage Suppression Pipe) can effectively suppress surge voltage and transient spike voltage in the circuit, and prevent lightning and static electricity.
6. On-board self-recovery fuse and protection diode can ensure stable output of current and voltage, prevent overcurrent and overvoltage, and improve impact resistance
7.On-mounted RS485 output terminal 120R resistor, switchable and enable, easy operation
8. Industrial rail-type ABS environmentally friendly shell, small size, easy to install, and high cost performance
Specification:
Type: Electrical Isolated TTL to RS485 Serial Port Converter
Power supply interface:
Supply voltage: 3.3V~5V
Interface protection: Anti-overvoltage and anti-reverse connection
Device interface: Compatible with TTL/RS485 standard\
TTL interface:
Interface form: terminal
Transmission distance: less than 10 meters
Transmission mode: Point-to-point
RS485 interface
Interface form: terminal
Interface protection: Provides 600W lightning protection, surge protection and 15KV electrostatic protection
Terminal resistance: 120R, can be switched through the dial switch
Transmission distance: about 1200 meters
Transmission mode: Point-to-many (up to 32 nodes, more than 16 nodes are recommended to add repeaters)

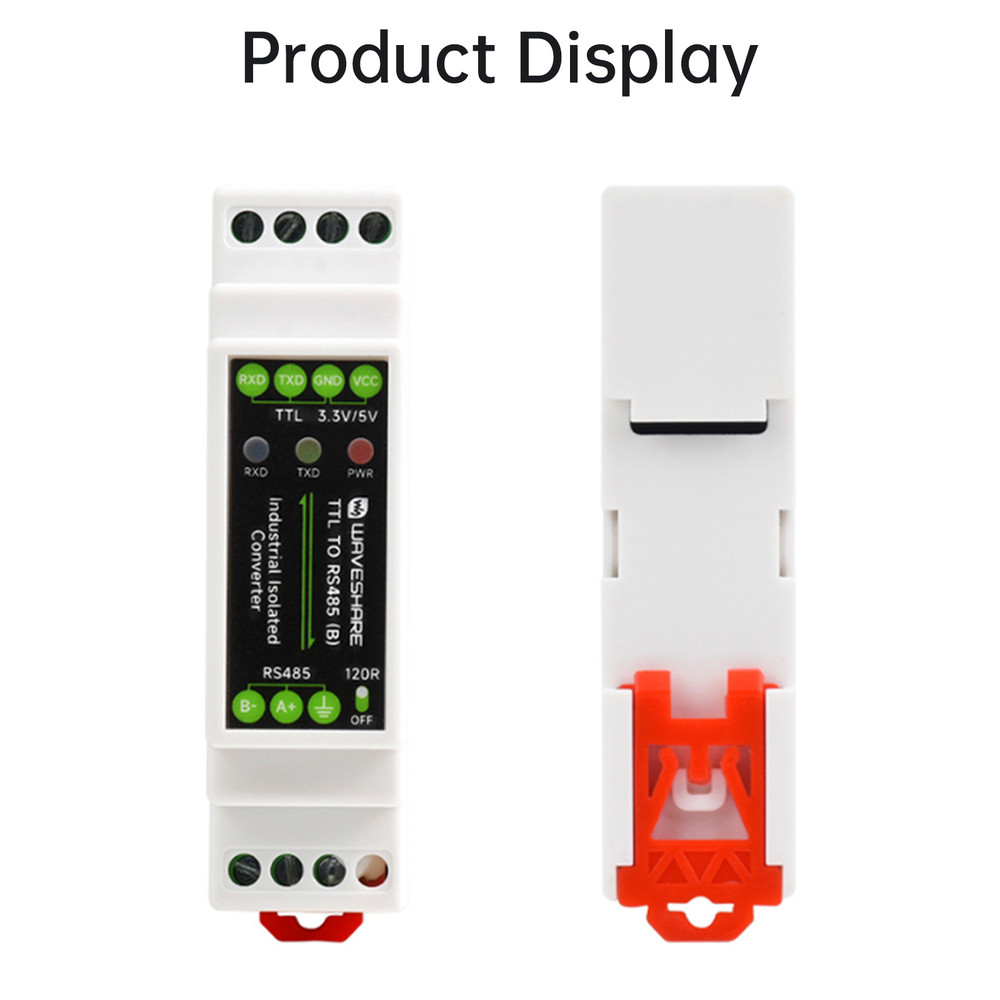

Product Appearance:
Housing: Rail-type ABS environmentally friendly housing for 35mm DIN rails
Size: 91.6 x58.7 x23.3mm
Package Include:
1x TTL TO RS485(B)
1x screwdriver
Features:
1. Compatible with TTL/RS485 standard, it can convert TTL signals into differential RS485 signals, half-duplex communication
2. Compatible with 3.3V ~ 5V TTL signal level, power supply terminal has anti-reverse and anti-overvoltage circuit
3. On-board integrated power supply isolation can provide stable isolation voltage, and the isolation terminal does not require additional power supply
4. On-board integrated digital isolation, which can perform signal isolation, with high reliability, strong anti-interference and low power consumption.
5. On-board TVS (Transitute Voltage Suppression Pipe) can effectively suppress surge voltage and transient spike voltage in the circuit, and prevent lightning and static electricity.
6. On-board self-recovery fuse and protection diode can ensure stable output of current and voltage, prevent overcurrent and overvoltage, and improve impact resistance
7.On-mounted RS485 output terminal 120R resistor, switchable and enable, easy operation
8. Industrial rail-type ABS environmentally friendly shell, small size, easy to install, and high cost performance
Specification:
Type: Electrical Isolated TTL to RS485 Serial Port Converter
Power supply interface:
Supply voltage: 3.3V~5V
Interface protection: Anti-overvoltage and anti-reverse connection
Device interface: Compatible with TTL/RS485 standard\
TTL interface:
Interface form: terminal
Transmission distance: less than 10 meters
Transmission mode: Point-to-point
RS485 interface
Interface form: terminal
Interface protection: Provides 600W lightning protection, surge protection and 15KV electrostatic protection
Terminal resistance: 120R, can be switched through the dial switch
Transmission distance: about 1200 meters
Transmission mode: Point-to-many (up to 32 nodes, more than 16 nodes are recommended to add repeaters)
Product Appearance:
Housing: Rail-type ABS environmentally friendly housing for 35mm DIN rails
Size: 91.6 x58.7 x23.3mm
Package Include:
1x TTL TO RS485(B)
1x screwdriver
