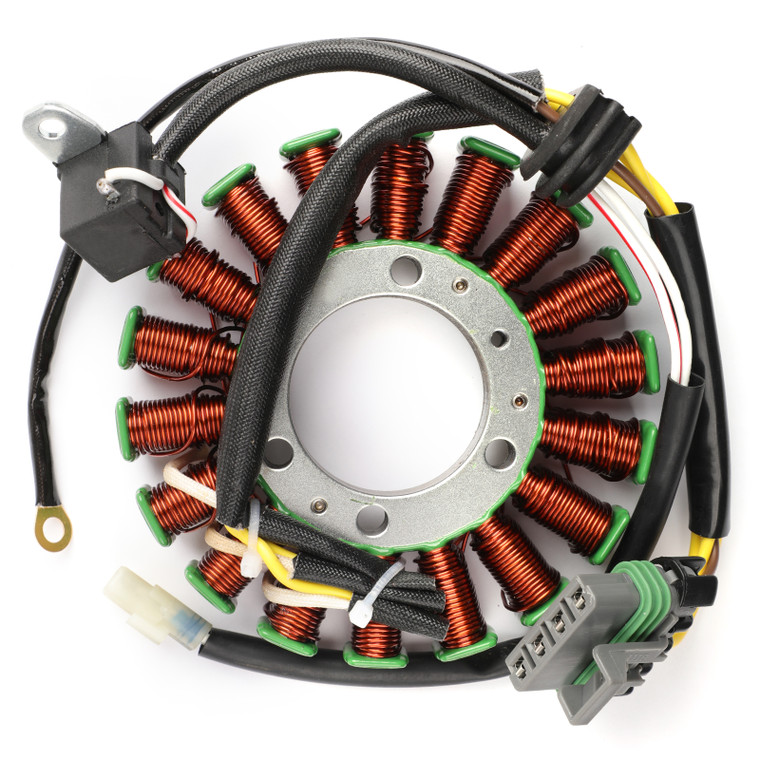

Magneto Generator Engine Stator Coil For Polaris Sportsman 500 HO Touring Ranger 500 EFI Carb 2005-2014

FEATURES:

Direct replacement to your original unit

Plug-and-play, direct fit, easy installation.

Highest grade lamination materials.

Highest grade copper windings, resistant to 200 degrees Celsius.

Pick up pulsar coil included.

Connector included.

All products shipped are tested.

SPECIFICATIONS:

Condition: Aftermarket 100% Brand New

Quanity: 1PC

Type: Generator Stator Coil

OEM Replacement Part Number:

3089906

3089959

3090081

3089579

Dimensions :

Interior diameter : 42mm / 1.64"

Exterior diameter : 115mm / 4.52"

Thickness : 13mm / 0.53"

Other specifications :

Number of wires : 6

Number of pins : 7

Number of plugs : 3

Number of fixation holes: 5(+1)

FITMENT:

Fits Polaris Sportsman 500 HO 2007

Fits Polaris Ranger 500 2010-2013

Fits Polaris Ranger 500 Carb 2005-2009

Fits Polaris Sportsman 500 HO EFI 2006/2008-2010

Fits Polaris Sportsman X2 500 2006-2009

Fits Polaris Ranger 500 EFI 2006-2009

Fits Polaris Sportsman 500 4x4 2008-2009

Fits Polaris Ranger Crew 500 2011-2013

Fits Polaris Sportsman 500 Touring 2008-2009

Fits Polaris Sportsman 500 HO Forest Tractor 2011-2014

PACKAGE INCLUDED:

1x Generator Stator Coil

NOTICE:

Before installing your new stator

Check the AC output of the stator.

Replace any burned or corroded connectors on stator and regulator/rectifier.

Check and repair any melted wiring.

Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.

All of the wires are installed in the correct order; please do not change any of the wiring configurations.

This stator is designed as a direct plug-in replacement and should be used as such.

When bolting stator in, always use locking compound.

If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
