Magneto Generator Engine Stator Rotor Coil For Polaris Outlaw / Sportsman 110 2016-2020 Generic

$61.89
SKU:
M550-A471
Shipping:
Free Shipping
Shipping Note:
Estimated in 3-10 working days Free Quick Shipping

Magneto Generator Engine Stator Rotor Coil Fit For Polaris Outlaw / Sportsman 110 2016-2020

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

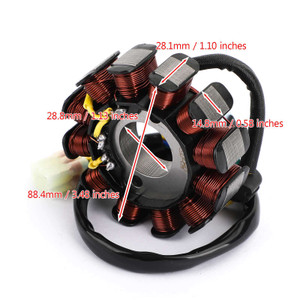

Dimensions :
Interior diameter : 28.8mm / 1.13 inches
Exterior diameter : 88.4mm / 3.48 inches
Pole's Thickness : 28.1mm / 1.10 inches
Pole's Width : 14.8mm / 0.58 inches

Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 1
Number of fixation holes: 2
Number of poles: 12

PART NUMBER(S):
0455121

Compatibility:
Fit for Polaris Outlaw 110 EFI L/C 2016-2020
Fit for Polaris Sportsman 110 EFI L/C 2016-2020

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Includes:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
