Product Overview

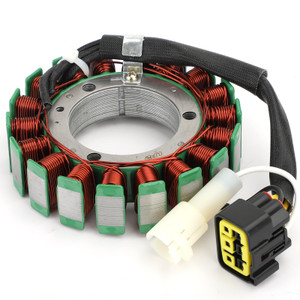

Magneto Generator BATTERY CHARGING Boat Motor Stator Coil For Suzuki DF40A DF50A DF50AV DF60A DF60AV 2011-2017
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:32120-88L00
Dimensions :
Interior diameter : 54mm / 2.12"
Exterior diameter : 115mm / 4.52"
Thickness : 14mm / 0.54"
Other specifications :
Number of wires: 5
Number of pins: 7
Number of plugs: 3
Number of fixation holes: 3
Fixation holes length: 50mm / 1.97"
FITMENT:
For Suzuki DF40A STS/L 2011-2017
For Suzuki DF50A QHS/L; T(H)S/L 2010-2017
For Suzuki DF50AV T(H)L/XL 2014-2017
For Suzuki DF60A T(H)S/L/X; QHS/L/X; WT(H)S/L/X; WQHL/X 2010-2017
For Suzuki DF60AV T(H)L/X 2014-2017
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:32120-88L00
Dimensions :
Interior diameter : 54mm / 2.12"
Exterior diameter : 115mm / 4.52"
Thickness : 14mm / 0.54"
Other specifications :
Number of wires: 5
Number of pins: 7
Number of plugs: 3
Number of fixation holes: 3
Fixation holes length: 50mm / 1.97"
FITMENT:
For Suzuki DF40A STS/L 2011-2017
For Suzuki DF50A QHS/L; T(H)S/L 2010-2017
For Suzuki DF50AV T(H)L/XL 2014-2017
For Suzuki DF60A T(H)S/L/X; QHS/L/X; WT(H)S/L/X; WQHL/X 2010-2017
For Suzuki DF60AV T(H)L/X 2014-2017
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
