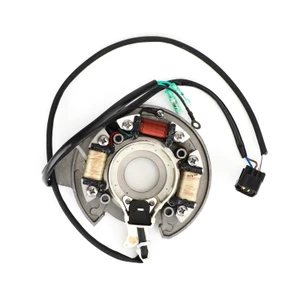

Magneto Generator Engine Stator Assembly Fit For Yamaha 40hp 40X E40X 1998-2017
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifics:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Other Specifications :
Number of wires: 7
Number of pins: 7
Number of plugs: 1(+3)
Reference Part Number:
66T-85560-00-00
66T-85560-01-00
Fitments:
Fit for Yamaha 40hp 40X E40X
Fit for Yamaha 40X M(W/T)HS/L 1998-2013
Fit for Yamaha E40X M(W/T)HS/L 1999-2009
Fit for Yamaha E40X MHL 2010-2017
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package includes:
1x Stator Assembly
Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifics:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Other Specifications :
Number of wires: 7
Number of pins: 7
Number of plugs: 1(+3)
Reference Part Number:
66T-85560-00-00
66T-85560-01-00
Fitments:
Fit for Yamaha 40hp 40X E40X
Fit for Yamaha 40X M(W/T)HS/L 1998-2013
Fit for Yamaha E40X M(W/T)HS/L 1999-2009
Fit for Yamaha E40X MHL 2010-2017
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package includes:
1x Stator Assembly
Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
