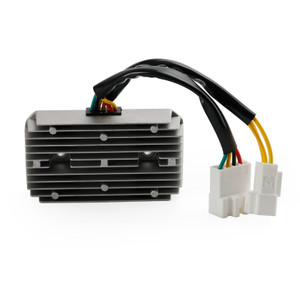

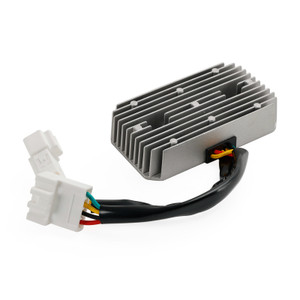

12V - TRIPHASE Regulator Rectifier Fit for SYM Joymax GTS 250 300 EVO LM25 LM30 2005-2011
Features:
OEM Spec Silver Finish Ceramic Hybrid construction.
Perfect fit and ready to install.
All products shipped are tested.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

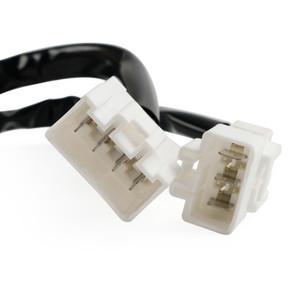

7 wires connectors features 2 plugs: rectangular shape 3-pin plug and rectangular shape 4-pin plug.
Attention:
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1 PC
Type: Regulator / Rectifier
Other specifications :
Number of wires: 7
Number of plugs: 2
Number of pins: 3 + 4
Replacement Part Number:
31600-HMA-000
31600-HMA-010
31600-HMA-020
Fits Make/Model/Year:
Fit for SYM GTS 250 EURO 2 (LM25W-6) (K5-K6) 2005-2006
Fit for SYM GTS 250 EURO 2 (LM25W-F) (K5-K6) 2005-2006
Fit for SYM GTS 250 EURO 3 (LM25W1-6) (K7-K8) 2007-2008
Fit for SYM GTS 250 EURO 3 (LM25W1-F) (K7-K8) 2007-2008
Fit for SYM GTS 250 EURO 3 (LM25W1-P) (K7-K8) 2007-2008
Fit for SYM GTS 250 EURO3 (LM25W1-P) (L4) 2014
Fit for SYM GTS 250 EVO (LM25W5-6) (K9-L0) 2009-2010
Fit for SYM GTS 250 EVO (LM25W5-P) (K9-L0) 2009-2010
Fit for SYM GTS 300 EFI (LM30W-6) (K9-L0) 2009
Fit for SYM GTS 300 EFI (LM30W-6) (L0-L1) 2010-2011
(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package includes:
1x Regulator Rectifier
Note:
Before installing your new regulator rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
How to distinguish CDI box with AC fired or CDI box with DC fired?
If headlights turn on without the engine running(with just the key on), it is a DC system. In the AC system, turning headlights on require the engine to be running. Another indication is, if the engine will only runs with a battery it is DC. If it will runs without a battery, it is a AC system.
What does the voltage regulator do?
This regulator has the task of converting the alternating voltage (AC) generated by the alternator into the direct voltage (DC) 12V used in the vehicle electrical system and keeping the voltage within a certain range.
The voltage regulator is also responsible for ensuring that the battery is charged and that the light bulbs do not burn out.
How do I know if the charge regulator can be defective?
- Incandescent lamps burn out all the time.
- Headlights get brighter and darker.
- The battery is constantly empty.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
