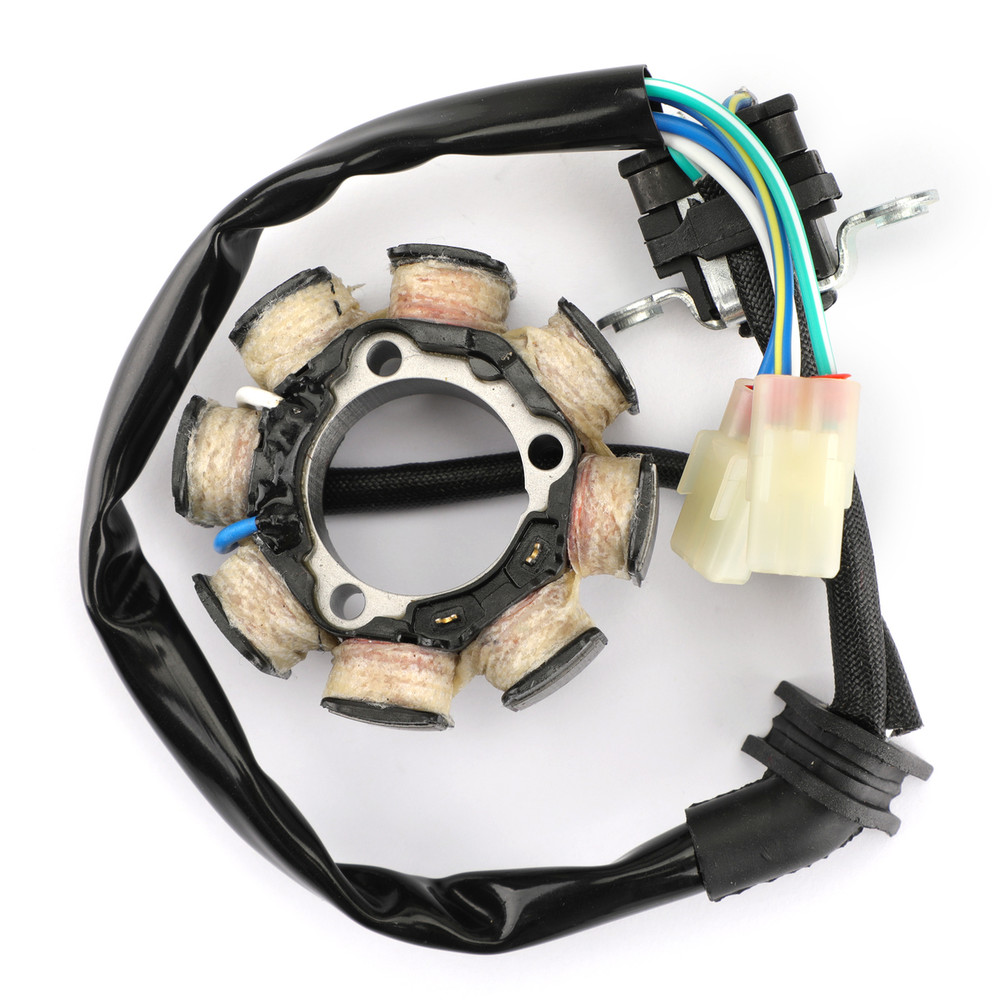

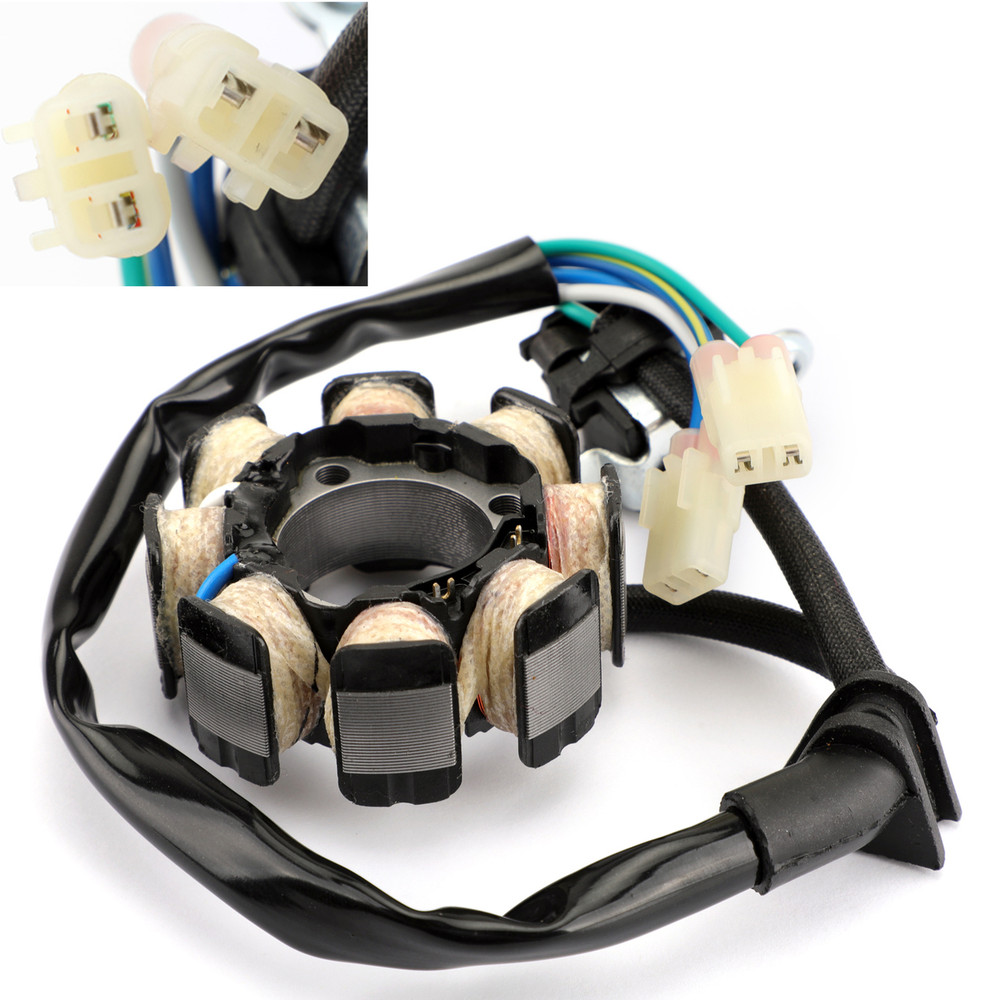

Alternator Stator Coil 8 Poles For Honda CRF250R 04-09 CRF 250 R 31120-KRN-670 Generic

Magneto Generator Engine Stator Coil For Honda CRF250 CRF250R 2004-2009 31120-KRN-670 CRF450R 2005-2008 31120-MEN-730 31120-MEN-731 31120-MEN-A11

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

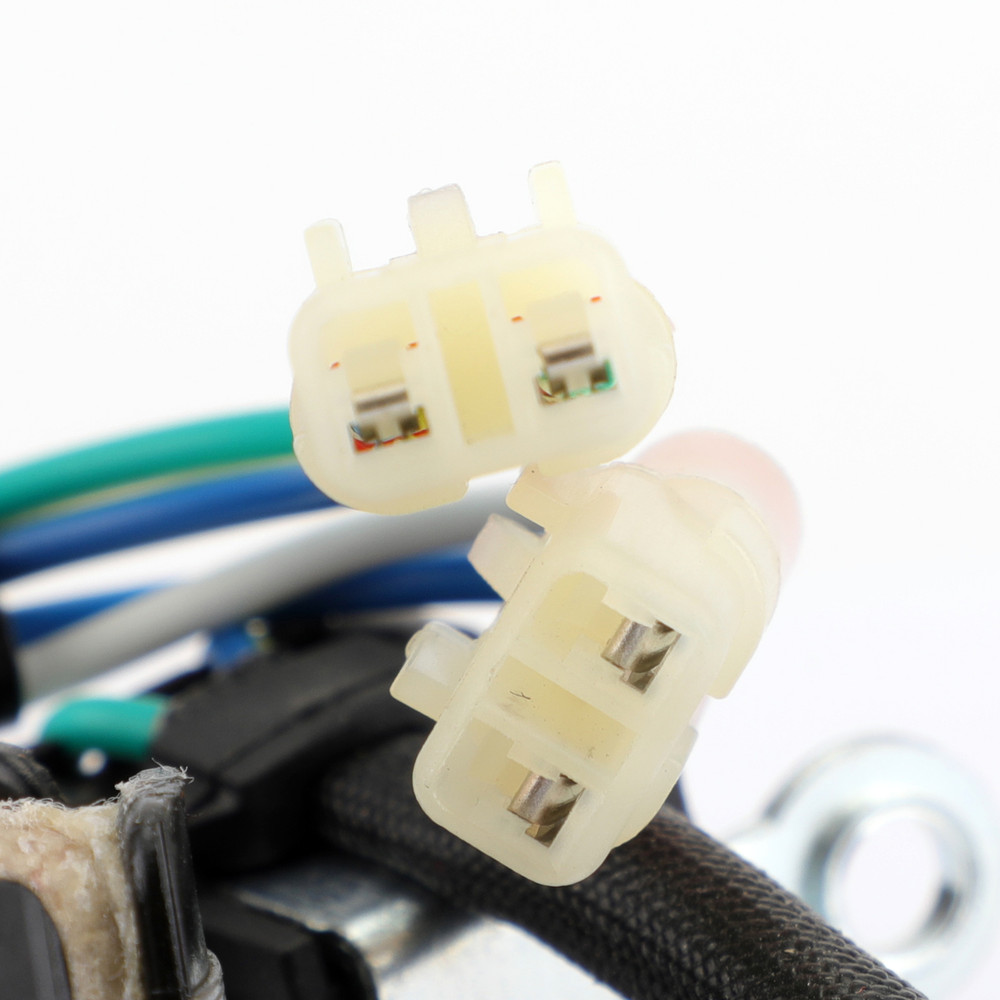

Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:
31120-KRN-670
31120-MEN-730
31120-MEN-731
31120-MEN-A11

Dimensions :
Interior diameter : 27mm / 1.08"
Exterior diameter : 60mm / 2.39"
Thickness : 16mm / 0.62"

Other specifications :
Number of wires: 4
Number of pins: 4
Number of plugs: 2
Number of fixation holes: 3

FITMENT:
For Honda CRF250 CRF250R 2004-2009
For Honda CRF450R 2005-2007
For Honda CRF450R 2008

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Delivery:
Free Shipping
Delivery Time:3-10 Working Days

Warranty:
Warranty Period:1 Years
Return:Goods can be returned within 60 days of receipt
24-Hour Support:Customer service throughout the day
