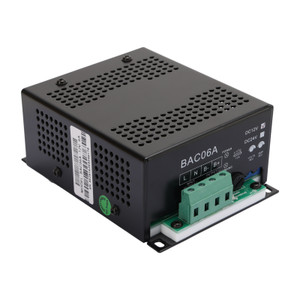

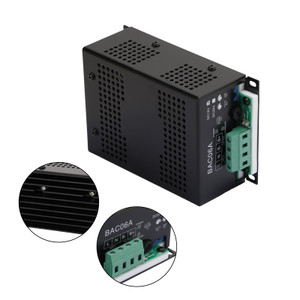

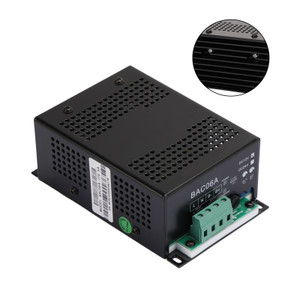

Battery Charger BAC06A 12V Controller BAC06A-12V For Samartgen Generator
Feature:
1: Designed in switching power structure, wide range of AC voltage input, small volume, light weight and high efficiency.
2: Two-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery,
can avoid overcharging and extent extend the battery life to the fullest.
3: With short circuit and reverse connection protection.
4: Charging voltage and current can be adjusted via potentiometer on the spot.
5: Suitable for 12V batteries, The maximum charge current for 12V charger is 6A.
6: LED display: Power indication and charging indication.
7: BAC06A switching battery charger adopts the latest switch power components, which is designed for charging lead-acid starting battery according to its property.
Voltage adjustment: When adjusting the voltage on site, the battery needs to be disconnected from the charger,
and while measuring the output voltage of the charger, adjust the voltage potentiometer (VOLT) until it reaches an appropriate value.
Current regulation: the output is connected to the battery pack, the charging current is measured when the charging voltage is not higher than 22.0V (11.0V),
and an appropriate charging current is set by adjusting the current potentiometer (AMP). The output current can also be estimated according to the scale of the current potentiometer.
Specifics:
Condition: 100% Brand New
Operating instructions: As shown in the picture
Battery Voltage: 12V
Max. Charge Current: 6A
Charge Voltage Range: 13~14.5V
Charge Current Range: 3~7A
AC Voltage: (95~280)VAC
AC Frequency: 50 Hz/60Hz
Power Consumption: 120W
No-Load Power Consumption: Less than 3W
Efficiency: More than 80%
Working Temperature: (-40~60)°C
Storage Temperature: (-40~85)°C
Weight: 0.65kg
Case Dimensions: 143*92*52mm/5.63*3.62*2.05in
Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.
Package Included:
1 X Battery Charger
1 X English Product Instructions
