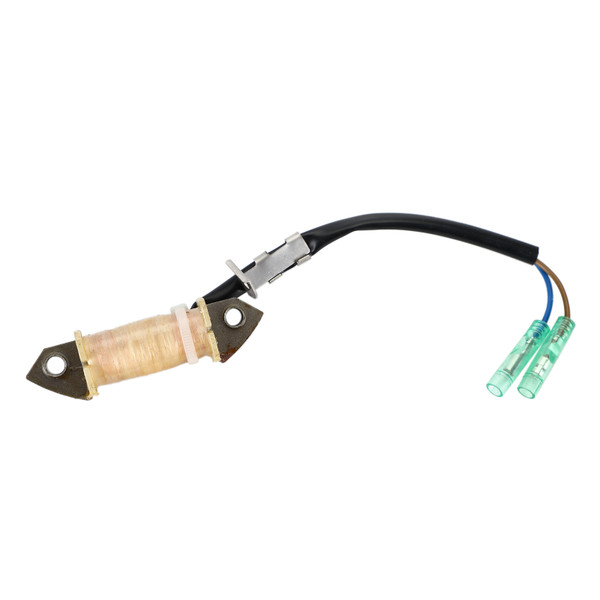

Outboard Charge Coil Assembly Fit for Yamaha 9.9Hp 13.5Hp 15Hp 66M-85520-00
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Charging Coil
Replacement Part Number:
66M-85520-00
Fitments:
Fit for Yamaha 9.9HP T9.9 EL/XR 2005-2006
Fit for Yamaha 9.9HP F9.9 MS/LH 2005
Fit for Yamaha 9.9HP F9.9 ES/LR 2005-2006
Fit for Yamaha 9.9HP F9.9C WHP 2000-2006
Fit for Yamaha 9.9HP F9.9C M(E)HS/L 1998-2008
Fit for Yamaha 9.9HP FT9.9D M(E/W)HS/L/XL 1999-2008
Fit for Yamaha 13.5HP F13.5A EPS/L 2005-2007
Fit for Yamaha 13.5HP F13.5A MHS/L 2001-2007
Fit for Yamaha 13.5HP F13.5A EHS/L 2002/2006-2007
Fit for Yamaha 15HP F15 ES/LH 1998-2005
Fit for Yamaha 15HP F15 PS/LR 2001-2006
Fit for Yamaha 15HP F15 PS/LH 2002-2006
Fit for Yamaha 15HP F15 MS/LH 1998-2005
Fit for Yamaha 15HP F15A E(H)PS/L 2000-2007
Fit for Yamaha 15HP F15A M(E/W)HS/L 1998-2007
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Charging Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
