Front N Rear Cylinder Jug Piston Kit For Can-Am Outlander 1000 T3 MAX 2012-2020 Generic

$270.99
SKU:
M587-A048~BC6
Shipping:
Free Shipping
Shipping Note:
Estimated in 3-10 working days Free Quick Shipping

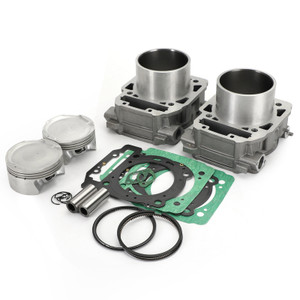

FRONT REAR Cylinder Jug 91mm Top End Kit For Can-Am BRP Commander Outlander Renegade Maverick Defender 1000 Piston Rings Gaskets

Features:
Kit includes cylinder(front + rear) piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 91 mm.
All of the components within this kit are bolt-on ready for a hassle free installation.

Specifics:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Bore Type: Stanard Bore
Bore Size: STD 91 mm
Placement on Vehicle: Front, Rear

Replacement Part Number:
Front Cylinder: 420623565, 420623566
Rear Cylinder: 420623567, 420623568
Cylinder Head Gasket: 420630850, 420630195
Cylinder Base Gasket 420630210
Piston: 420686094, 420686090, 420685248, 420685242
Pin, piston: 420216350, 420216351,420216352
Ring Set, piston: 420296774, 420685244
Circlips, piston: 420245436

Fitments:
Fit for Can-Am BRP Commander 1000 2011-2017
Fit for Can-Am BRP Commander Max 1000 2014-2017
Fit for Can-Am BRP Outlander 1000 4x4 EFI 2012-2015
Fit for Can-Am BRP Outlander Max 1000 4x4 EFI 2013-2015
Fit for Can-Am BRP Outlander 1000 4x4 EFI 2016-2017 Except 1000(R)
Fit for Can-Am BRP Outlander Max 1000 4x4 EFI 2016-2017 Except 1000(R)
Fit for Can-Am BRP Outlander 1000 4x4 T3 2018-2020 (Only T3 Models)
Fit for Can-Am BRP Outlander Max 1000 4x4 T3 2018-2020 (Only T3 Models)
Fit for Can-Am BRP Outlander 1000 6X6 EFI 2014-2020
Fit for Can-Am BRP Outlander Max 1000 6X6 EFI 2014-2020
Fit for Can-Am BRP Renegade 1000 4x4 2012-2015
Fit for Can-Am BRP Renegade 1000 T3 2018-2020 (Only T3 models)
Fit for Can-Am BRP Renegade 1000R 2016-2019
Fit for Can-Am BRP Defender HD10 2016-2021
Fit for Can-Am BRP Defender Max HD10 2017-2021
Fit for Can-Am BRP Defender Pro HD10 2020-2021
Fit for Can-Am BRP Maverick 1000 2013-2018
Fit for Can-Am BRP Maverick 1000R 2013-2018
Fit for Can-Am BRP Maverick Max 1000R 2013-2017
Fit for Can-Am BRP Maverick Sport 1000 2019-2021
Fit for Can-Am BRP Maverick Sport 1000R 2019-2021
Fit for Can-Am BRP Maverick Sport Max 1000R 2019-2021
Fit for Can-Am BRP Maverick Trail 1000 2019-2021

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
2 x 91mm Cylinders (Front and Rear)
2 x Pistons
2 set x Piston rings
2 x Wristpins
4 x Circlips
2 set x Cylinder Head Gaskets
2 set x Cylinder Base Gaskets
2 set x Chain Tensioner Gaskets

Note:
Front cylinder and rear cylinder cannot be exchanged, the tensioner holes are opposites.
There's two cylinder head gasket type,  please check out the pictures to make sure our is what you want.

Delivery:
Free Shipping
Delivery Time:2-6 Working Days

Warranty:
Warranty Period:1 Years
Return:Goods can be returned within 60 days of receipt
