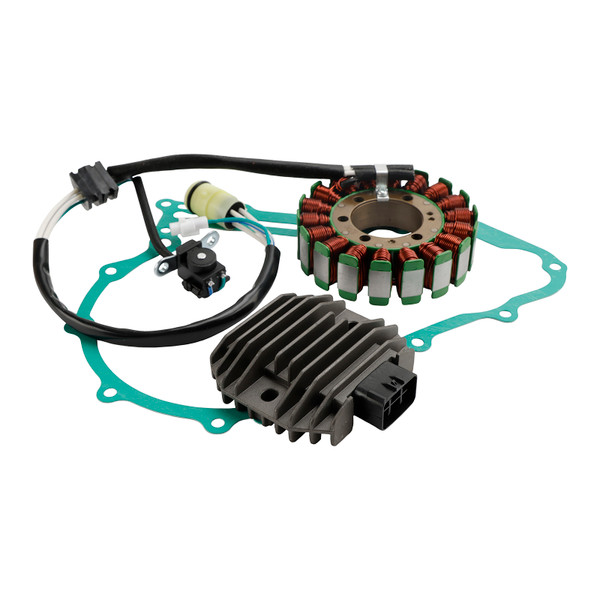

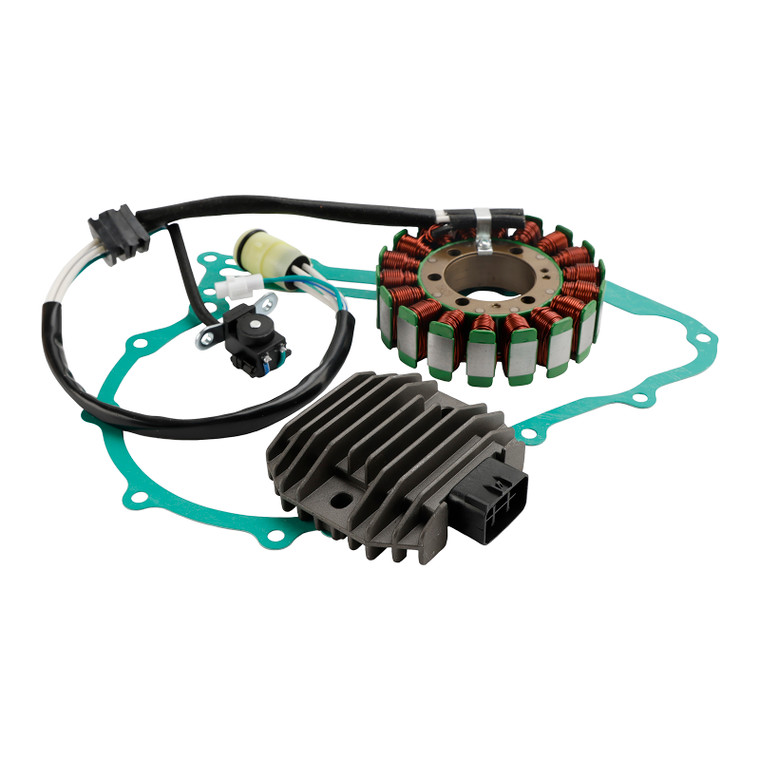

Magneto Coil Stator + Voltage Regulator + Gasket Assy For Yamaha YFM700 Raptor 700 700R 2006-2023
Features:
Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.
ATTENTION:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!
Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit
Replacement Part Number:
Stator Assy: 1S3-81410-00

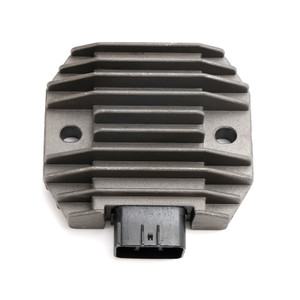

Rectifier, regulator: 5BN-81960-00
Gasket, generator cover: 1S3-15451-00
Fits Make/Year/Model:
Fit for Yamaha ATV 2006 RAPTOR 700 - YFM700RV
Fit for Yamaha ATV 2007 RAPTOR 700 - YFM70RW
Fit for Yamaha ATV 2007 RAPTOR 700 GYTR EDITION - YFM70RYRW
Fit for Yamaha ATV 2007 RAPTOR 700 SPECIAL EDITION - YFM70RSEW
Fit for Yamaha ATV 2007 RAPTOR 700 SPECIAL EDITION 2 - YFM70RSE2W
Fit for Yamaha ATV 2008 RAPTOR 700 - YFM70RXGY
Fit for Yamaha ATV 2008 RAPTOR 700 - YFM70RXL
Fit for Yamaha ATV 2008 RAPTOR 700 SPECIAL EDITION - YFM70RSPX
Fit for Yamaha ATV 2008 RAPTOR 700 SPECIAL EDITION 2 - YFM70RSP2X
Fit for Yamaha ATV 2009 RAPTOR 700 R - YFM70RYL
Fit for Yamaha ATV 2009 RAPTOR 700 R - YFM70RYW
Fit for Yamaha ATV 2009 RAPTOR 700 SPECIAL EDITION - YFM70RSEY
Fit for Yamaha ATV 2010 RAPTOR 700 SE - YFM7RSEZ
Fit for Yamaha ATV 2011 RAPTOR 700 SPECIAL EDITION - YFM7RSEA
Fit for Yamaha ATV 2011 RAPTOR 700R - YFM7RAL
Fit for Yamaha ATV 2011 RAPTOR 700R - YFM7RAW
Fit for Yamaha ATV 2012 RAPTOR 700 SPECIAL EDITION - YFM7RSEB
Fit for Yamaha ATV 2012 RAPTOR 700R - YFM7RBL
Fit for Yamaha ATV 2012 RAPTOR 700R - YFM7RBW
Fit for Yamaha ATV 2013 RAPTOR 700 - YFM7RDL
Fit for Yamaha ATV 2013 RAPTOR 700 - YFM7RDW
Fit for Yamaha ATV 2013 RAPTOR 700R SPECIAL EDITION - YFM7RSEDB
Fit for Yamaha ATV 2013 RAPTOR 700R SPECIAL EDITION - YFM7RSEDL
Fit for Yamaha ATV 2014 RAPTOR 700 - YFM700REL
Fit for Yamaha ATV 2014 RAPTOR 700 - YFM700REO
Fit for Yamaha ATV 2014 RAPTOR 700 - YFM700RSEM
Fit for Yamaha ATV 2014 RAPTOR 700R SE - YFM700RSEL
Fit for Yamaha ATV 2014 RAPTOR 700R SE - YFM700RSES
Fit for Yamaha ATV 2015 RAPTOR 700 - YFM700RFL
Fit for Yamaha ATV 2015 RAPTOR 700R SE - YFM700RSFB
Fit for Yamaha ATV 2015 RAPTOR 700R SE - YFM700RSFL
Fit for Yamaha ATV 2016 RAPTOR 700 - YFM70RSBGL
Fit for Yamaha ATV 2016 RAPTOR 700R - YFM70RSXGL
Fit for Yamaha ATV 2016 RAPTOR 700R SE - YFM70RSSGY
Fit for Yamaha ATV 2017 RAPTOR 700 - YFM70RSBHO
Fit for Yamaha ATV 2017 RAPTOR 700 - YFM70RSSHB
Fit for Yamaha ATV 2017 RAPTOR 700R - YFM70RSXHL
Fit for Yamaha ATV 2018 RAPTOR 700 - YFM70RSBJD
Fit for Yamaha ATV 2018 RAPTOR 700R - YFM70RSXJL
Fit for Yamaha ATV 2018 RAPTOR 700R SE - YFM70RSSJW
Fit for Yamaha ATV 2019 RAPTOR 700 - YFM70RSBKD
Fit for Yamaha ATV 2019 RAPTOR 700R - YFM70RSXKL
Fit for Yamaha ATV 2019 RAPTOR 700R SE - YFM70RSSKR
Fit for Yamaha ATV 2019 RAPTOR 700R SE - YFM70RSSKW
Fit for Yamaha ATV 2020 RAPTOR 700 - YFM70RSBLW
Fit for Yamaha ATV 2020 RAPTOR 700R - YFM70RSCLL
Fit for Yamaha ATV 2020 RAPTOR 700R SE - YFM70RSSLM
Fit for Yamaha ATV 2020 RAPTOR 700R SE - YFM70RSSLR
Fit for Yamaha ATV 2021 RAPTOR 700 - YFM70RSBMS BCXD
Fit for Yamaha ATV 2021 RAPTOR 700 CALIF - YFM70RCBMS BFK1
Fit for Yamaha ATV 2021 RAPTOR 700R - YFM70RSCML BCXE
Fit for Yamaha ATV 2021 RAPTOR 700R CALIF - YFM70RCCML BFK2
Fit for Yamaha ATV 2021 RAPTOR 700R SPECIAL EDITION - YFM70RSCMB BCXF0
Fit for Yamaha ATV 2021 RAPTOR 700R SPECIAL EDITION - YFM70RSCMY BCXF
Fit for Yamaha ATV 2021 RAPTOR 700R SPECIAL EDITION CALIF - YFM70RCCMB BFK3
Fit for Yamaha ATV 2021 RAPTOR 700R SPECIAL EDITION CALIF - YFM70RCCMW BFK4
Fit for Yamaha ATV 2021 RAPTOR 700R SPECIAL EDITION CALIF - YFM70RCCMY BFK31
Fit for Yamaha ATV 2022 RAPTOR 700 - YFM70RSBNS BCXL
Fit for Yamaha ATV 2022 RAPTOR 700 CALIF - YFM70RCBNS BFK5
Fit for Yamaha ATV 2022 RAPTOR 700R - YFM70RSCNL BCXM
Fit for Yamaha ATV 2022 RAPTOR 700R CALIFORNIA - YFM70RCCNL BFK6
Fit for Yamaha ATV 2022 RAPTOR 700R SE - YFM70RSCNB BCXN
Fit for Yamaha ATV 2022 RAPTOR 700R SE - YFM70RSCNW BCXN0
Fit for Yamaha ATV 2022 RAPTOR 700R SE CALIFORNIA - YFM70RCCNB BFK7 2022
Fit for Yamaha ATV 2022 RAPTOR 700R SE CALIFORNIA - YFM70RCCNW BFK70
Fit for Yamaha ATV 2023 RAPTOR 700 - YFM70RCBPL BFK8
Fit for Yamaha ATV 2023 RAPTOR 700 - YFM70RSBPL BMD2
Fit for Yamaha ATV 2023 RAPTOR 700R - YFM70RSCPL BMD3
Fit for Yamaha ATV 2023 RAPTOR 700R CALIF - YFM70RCCPL BFK9
Fit for Yamaha ATV 2023 RAPTOR 700R SE - YFM70RSCPB BMD1
Fit for Yamaha ATV 2023 RAPTOR 700R SE - YFM70RSCPD BMD4
Fit for Yamaha ATV 2023 RAPTOR 700R SE CALIF - YFM70RCCPB BFKA
Fit for Yamaha ATV 2023 RAPTOR 700R SE CALIF - YFM70RCCPD BFKB
Fit for Yamaha ATV 2024 RAPTOR 700 - YFM70RSBRL
Fit for Yamaha ATV 2024 RAPTOR 700 CAL - YFM70RCBRL
Fit for Yamaha ATV 2024 RAPTOR 700R - YFM70RSCRL
Fit for Yamaha ATV 2024 RAPTOR 700R CAL - YFM70RCCRL
Fit for Yamaha ATV 2024 RAPTOR 700R SE - YFM70RSCRB
Fit for Yamaha ATV 2024 RAPTOR 700R SE - YFM70RSCRD
Fit for Yamaha ATV 2024 RAPTOR 700R SE CAL - YFM70RCCRB
Fit for Yamaha ATV 2024 RAPTOR 700R SE CAL - YFM70RCCRD
(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

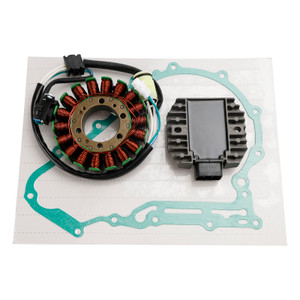

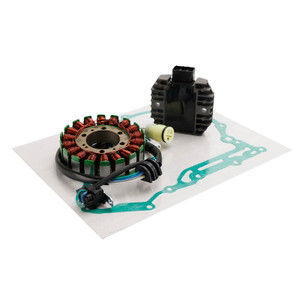

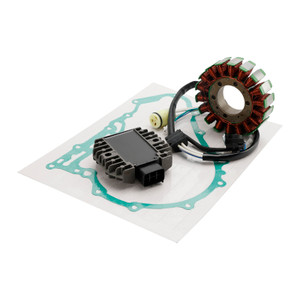

Package Includes:
1 x Stator Coil
1 x Regulator Rectifier
1 x Generator Gasket
(Comes exactly as pictured.)
Note:
Before installing your new stator regulator rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
