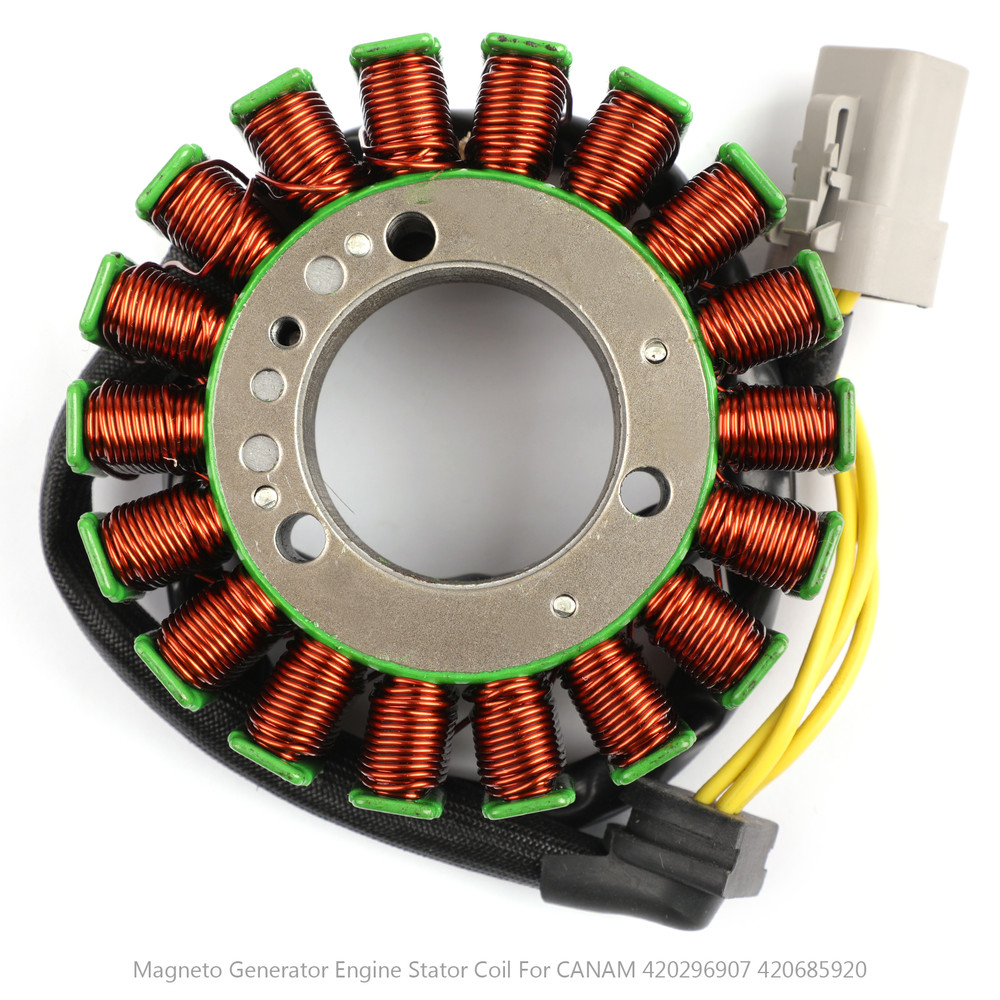

Magneto Generator Engine Stator Coil For CANAM 420296907 420685920
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
All products shipped are tested
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
OEM Replacement Part Number: 420296907,420685920
Dimensions :
Interior diameter : 41 mm / 1.63"
Exterior diameter : 104 mm / 4.09"
Thickness : 13 mm / 0.5"
Other specifications :
Number of wires : 3
Number of pins : 4
Number of plugs : 1
Number of fixation holes: 3
FITMENT:
Fits Can-am Outlander 650 EFI 2006-2018
Fits Can-am Outlander 650 XT 2006-2009
Fits Can-am Outlander Max 400 2004-2015/2015
Fits Can-am Outlander Max 650 2006-2014/2014-2016/2016-2017/2017-2018/2018
Fits Can-am Outlander 500 XT 2007-2009
Fits Can-am Outlander Max 650 XT 2008-2009
Fits Can-am Outlander 500 2007-2015, 2015, 2015
Fits Can-am Outlander Max 500 2007-2015, 2015
Fits Can-am Renegade 500 2008-2015
Fits Can-am Outlander 800 R 2006-2008, 2008-2014
Fits Can-am Outlander Max 500 XT 2008
Fits Can-am Renegade 800 R 2009-2015
Fits Can-am Outlander Max 800 R 2009-2013, 2013-2014, 2014
Fits Can-am Outlander Max 800 2006-2008
Fits Can-am Renegade 800 2007-2008
Fits Can-am Renegade 1000 2012-2015
Fits Can-am Outlander 1000 2012
Fits Can-am Outlander Max 570 2016, 2016-2017, 2017-2018, 2018
Fits Can-am Renegade 1000R 2016, 2016-2017, 2017-2018, 2018
Fits Can-am Renegade 850 2016-2018
Fits Can-am Outlander L 450 2016
Fits Can-am Outlander 450 2017-2018
Fits Can-am Outlander L Max 450 2016
Fits Can-am Outlander Max 450 2017-2018
Fits Can-am Outlander 570 2017-2018
Fits Can-am Outlander L 570 2016
Fits Can-am Outlander L Max 570 2016
Fits Can-am Renegade 570 2016-2018
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
