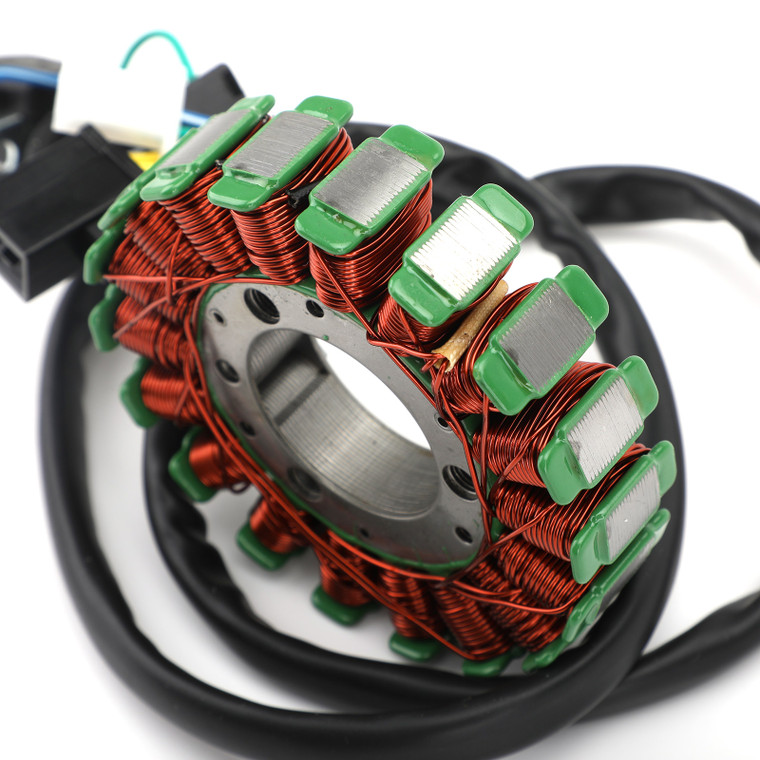

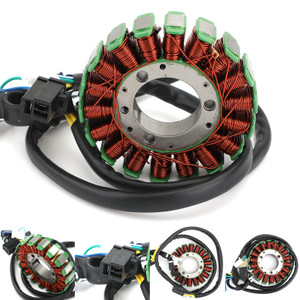

Magneto Generator Engine Stator Coil For Suzuki DR200SE 1996-2013 DR125SE 1994-2002 Repl.32101-42A40 / 32101-42A30
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 32101-42A40 / 32101-42A30
Dimensions :
Interior diameter : 34mm / 1.35"
Exterior diameter : 92mm / 3.65"
Thickness : 11mm / 0.44"
Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3
Fixation holes length: 33mm/1.31"
FITMENT:
For Suzuki DR200SE 1996-2013
For Suzuki DR125SE 1994-2002
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 32101-42A40 / 32101-42A30
Dimensions :
Interior diameter : 34mm / 1.35"
Exterior diameter : 92mm / 3.65"
Thickness : 11mm / 0.44"
Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3
Fixation holes length: 33mm/1.31"
FITMENT:
For Suzuki DR200SE 1996-2013
For Suzuki DR125SE 1994-2002
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Delivery:
Free Shipping
Delivery Time:3-10 Working Days
Warranty:
Warranty Period:1 Years
Return:Goods can be returned within 60 days of receipt
24-Hour Support:Customer service throughout the day
