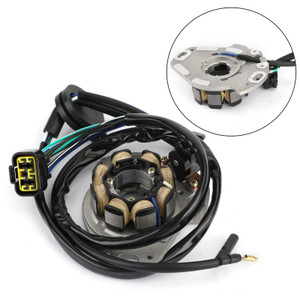

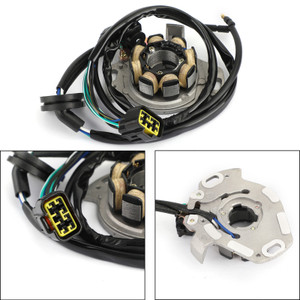

Magneto Generator Engine Stator Fit For Honda CR250 CR250R CR125R 2000-2001
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 27.4mm / 1.08 inches
Exterior diameter : 60.5mm / 2.39 inches
Pole's Thickness : 24.5mm / 0.96 inches
Pole's Width : 15.4mm / 0.60 inches
Other Specifications :
Number of wires: 8
Number of pins: 12
Number of plugs: 1(+4)
Number of fixation holes: 2
Number of poles: 8
PART NUMBER(S):
31100-KZ4-J31
31100-KZ3-J21
Fitments:
Fit for Honda CR125R 2001
Fit for Honda CR250 CR250R 2000-2001
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
