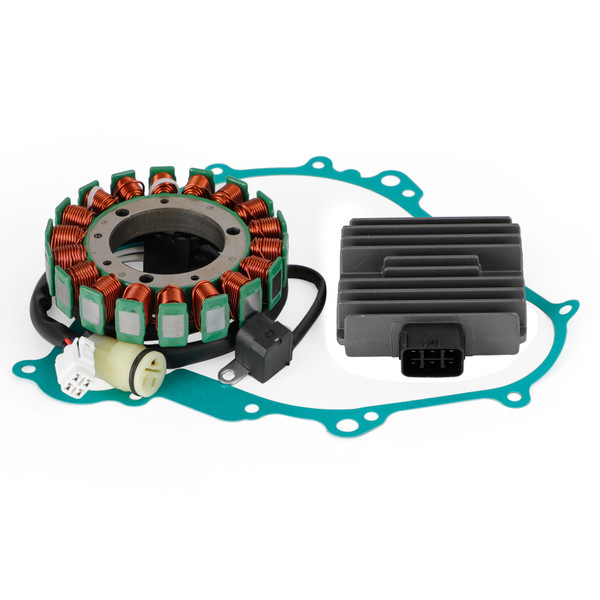

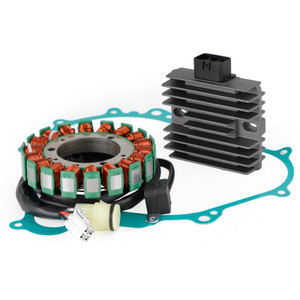

Magneto Stator+Voltage Rectifier+Gasket For Yamaha YFM450 Grizzly 450 2011-2016 Generic

$95.89
SKU:
M550-C188
Shipping:
Free Shipping
Shipping Note:
Estimated in 3-10 working days Free Quick Shipping

Magneto Coil Stator + Voltage Regulator + Gasket Assy For Yamaha YFM 450 F Grizzly, Kodiak 2011-2016

Features:
Made of high grade magnetically conductive material to minimize the magnetic losses.
Computerized winding to optimize quality of copper wiring
Higher grade of electric components.
Dramatically improves reliability and durability comparing to stock units.
Best quality lead wires with insulation bring both enhanced abrasion and heat resistant.
Rectifier made of highest quality electro-conducting lamination materials.
Improved heat sink and charging capabilities.
Direct replacement to your original unit.
Plug-and-play, direct fit, instruction is NOT Included.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator + Regulator + Gasket

Replacement Part Number:
Stator Assy: 1CT-81410-00
Rectifier, regulator: 4XY-81960-00
Gasket, generator cover: 5GH-15451-00

Fitment:
Fit for Yamaha YFM450 YFM450FWAD Grizzly 450 EPS 2011-2016
Fit for Yamaha YFM450 YFM450FWAD Grizzly 450 EPS Hunter 2011-2016
Fit for Yamaha YFM450 YFM450FWAD Grizzly 450 EPS Special Edition 2011

Fit for Yamaha YFM450 YFM450FWAD Kodiak 450 EPS 2012-2014
Fit for Yamaha YFM450 YFM450FWAD Kodiak 450 EPS Hunter 2012-2014

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
1 x Stator Coil
1 x Regulator Rectifier
1 x Generator Gasket

Note:
Before installing your new stator regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
