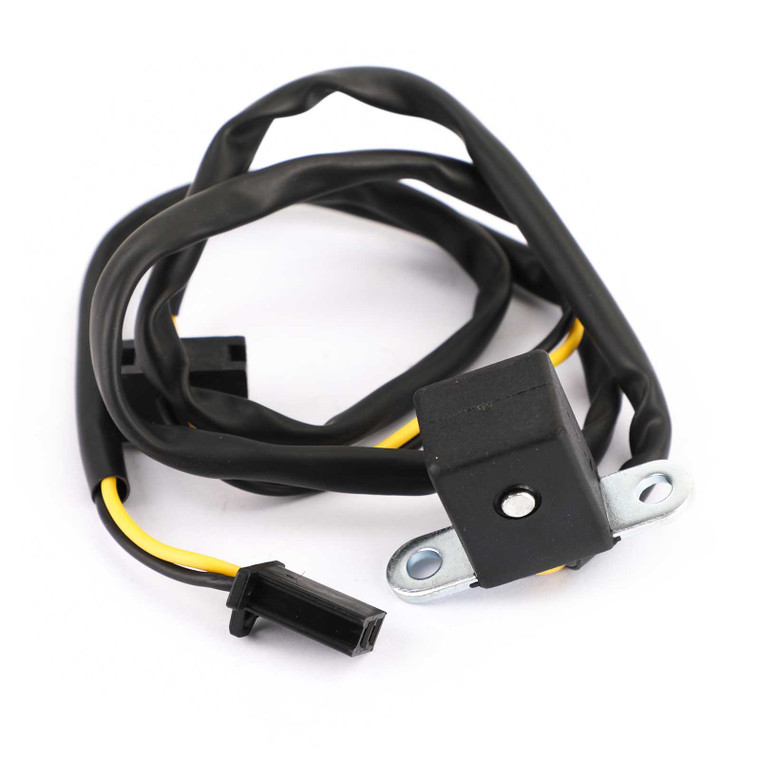

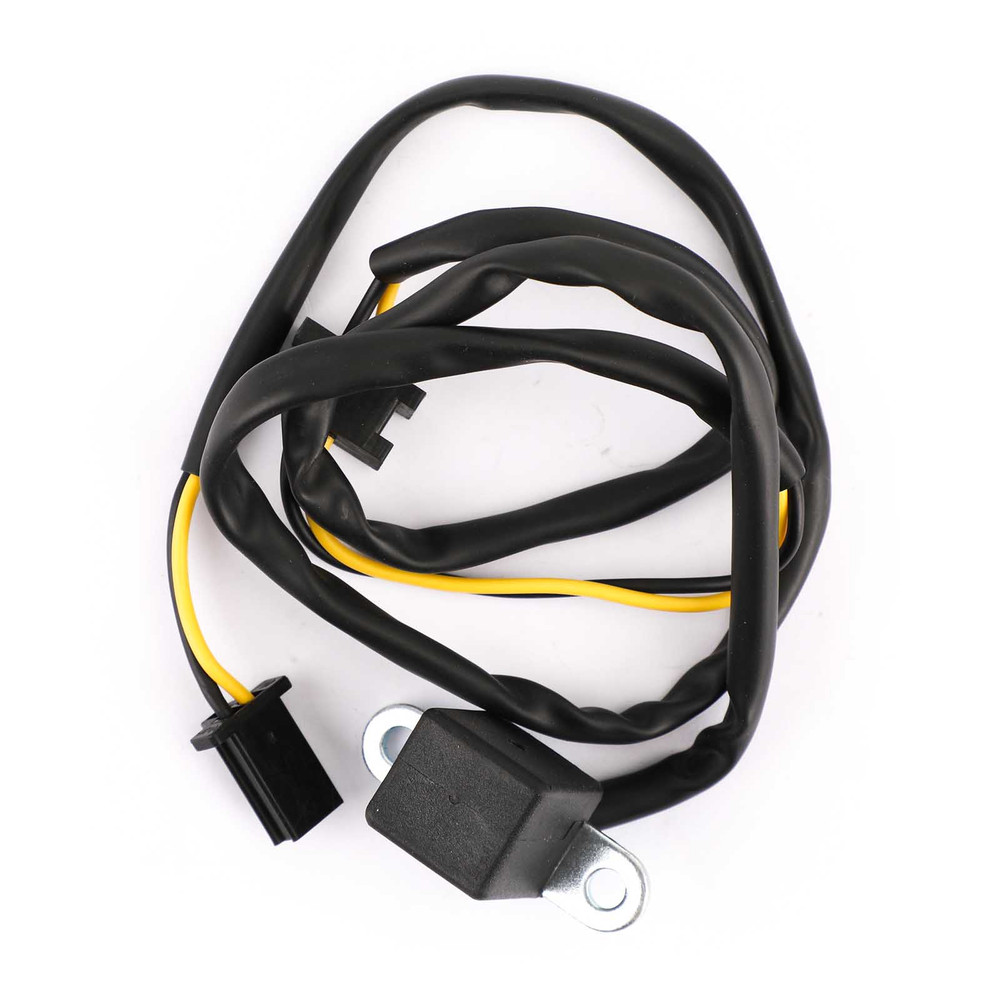

Pick-up Pulsar / Pulse Sensor Fit For Kawasaki EN400 Bulcan EX500 Ninja GPZ500 1994-2009 59026-1126
Features:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Pick up pulsar coil

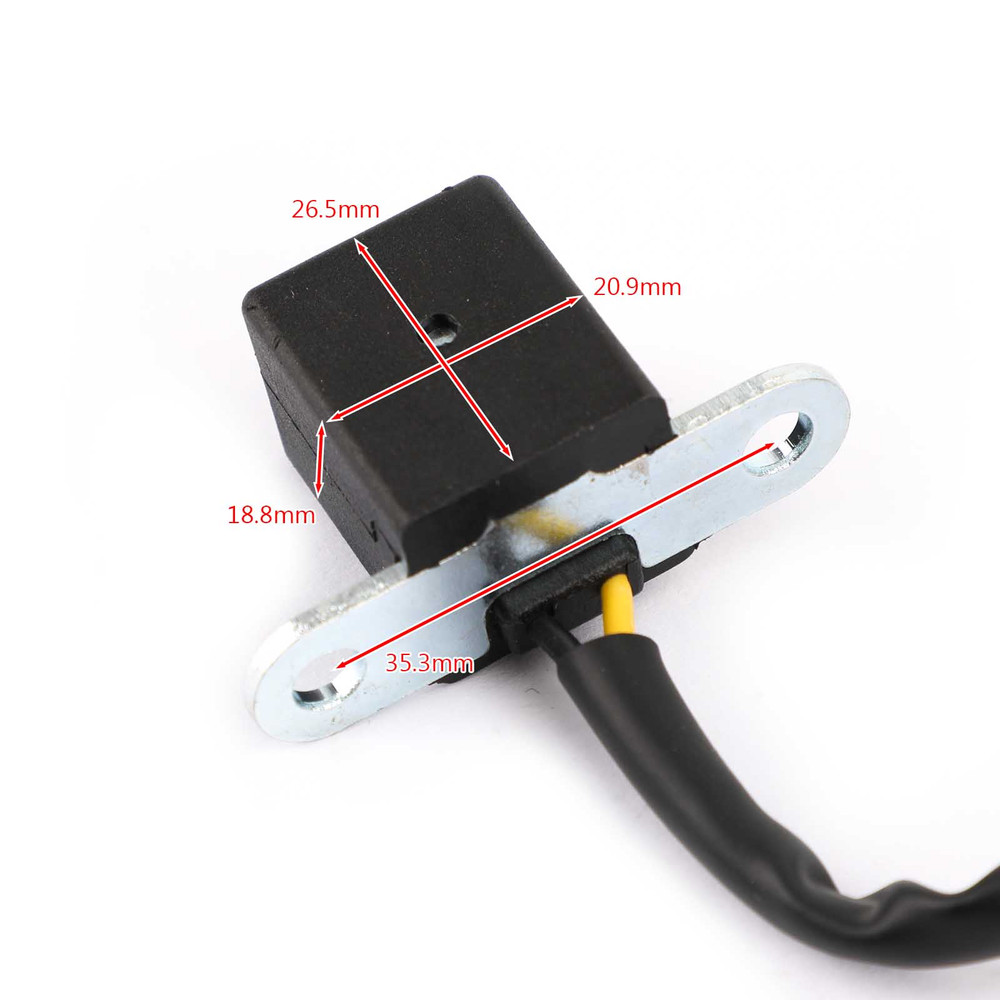

Dimensions:
Height: 18.8mm
Length: 26.5mm
Width: 20.9mm
Bracket center to center: 35.3mm
Other Specifications:
Number of wires: 2
Number of plugs: 1
Number of pins: 2
PART NUMBERS:
59026-1126
Fitments:
Fit for Kawasaki EN400 Bulcan 400 1994
Fit for Kawasaki EN500 Vulcan 500 B1 B2 1994-1995
Fit for Kawasaki EX400 EX-4 1994-1995
Fit for Kawasaki EX500 Ninja 500 1994-2005
Fit for Kawasaki EX500 Ninja 500R 2006-2009
Fit for Kawasaki EX500 1994-2002
Fit for Kawasaki EX500 GPZ500S 1994-2005
Package Included:
1x Pick up pulsar coil
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
NOTE:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.
Features:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Pick up pulsar coil
Dimensions:
Height: 18.8mm
Length: 26.5mm
Width: 20.9mm
Bracket center to center: 35.3mm
Other Specifications:
Number of wires: 2
Number of plugs: 1
Number of pins: 2
PART NUMBERS:
59026-1126
Fitments:
Fit for Kawasaki EN400 Bulcan 400 1994
Fit for Kawasaki EN500 Vulcan 500 B1 B2 1994-1995
Fit for Kawasaki EX400 EX-4 1994-1995
Fit for Kawasaki EX500 Ninja 500 1994-2005
Fit for Kawasaki EX500 Ninja 500R 2006-2009
Fit for Kawasaki EX500 1994-2002
Fit for Kawasaki EX500 GPZ500S 1994-2005
Package Included:
1x Pick up pulsar coil
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
NOTE:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.
