STATOR For Kawasaki KAF620 Mule 3000 Mule 3010 4X4 01-08 KAF620 Hardwoods Green HD 03-08 KAF620 Mule 3010 Trans 4X4 05-08 3020 Turf 01-03

MSRP: $163.63
$116.88
(You save $46.75 )
(No reviews yet) Write a Review
SKU:
M550-A337
Shipping:
Free Shipping

FREE fast shipping for USA. International delivery may take longer.

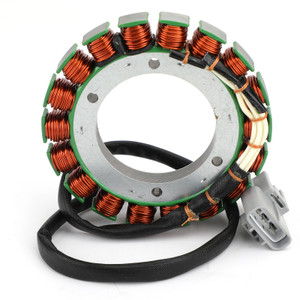

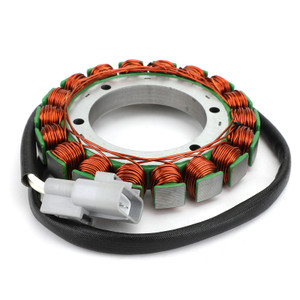

Magneto Generator Engine Stator Coil For Kawasaki KAF620 Mule 3000 3010 3020 4X4 Trans Hardwoods 2001-2008

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:59031-2126

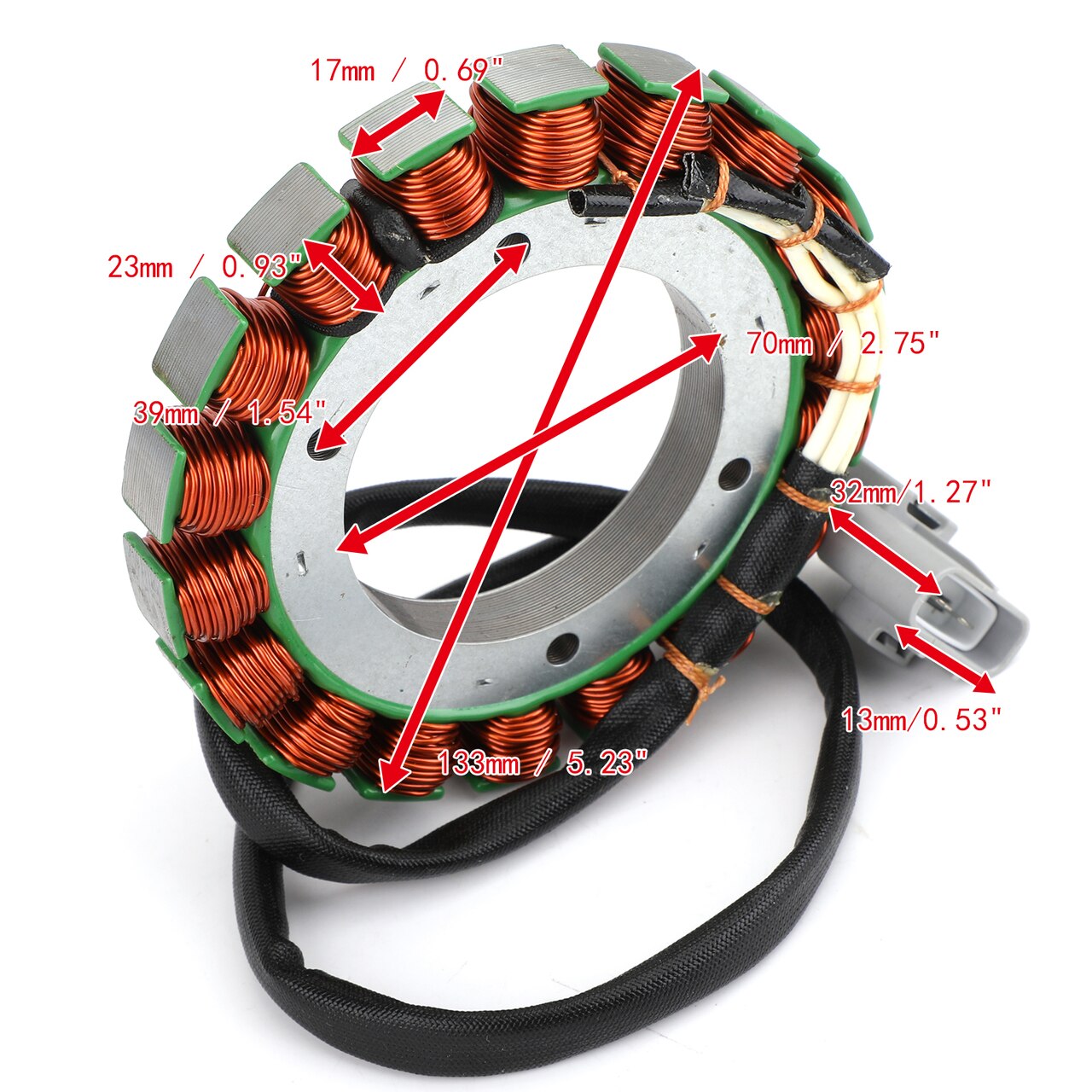

Dimensions :
Interior diameter : 70mm / 2.75"
Exterior diameter : 133mm / 5.23"
Pole's Thickness : 23mm / 0.93"
Pole's Width : 17mm / 0.69"

Other specifications :
Number of wires: 3

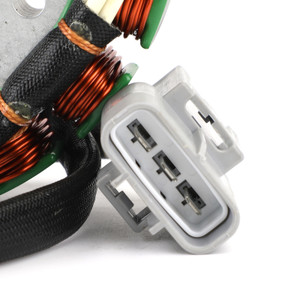

Number of pins: 3
Number of plugs: 1
Plug's L*W:32mm/1.27"*13mm/0.53"
Number of fixation holes: 4
Number of poles: 18
Fixation holes length: 39mm / 1.54"

FITMENT:
For Kawasaki KAF620 Mule 3000 2001-2008
For Kawasaki KAF620 Mule 3010 4X4 2001-2008
For Kawasaki KAF620 Mule 3010 4X4 Hardwoods Green HD 2003-2008
For Kawasaki KAF620 Mule 3010 Trans 4X4 2005-2008
For Kawasaki KAF620 Mule 3010 Trans 4X4 Hardwoods Green HD 2005-2008
For Kawasaki KAF620 Mule 3020 Turf 2001-2003

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
