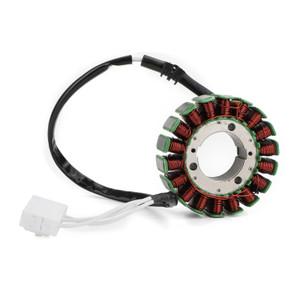

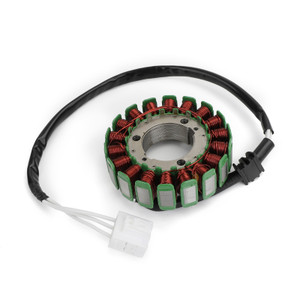

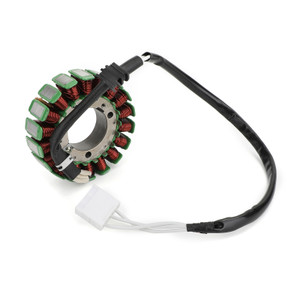

Stator For Yamaha XJ6SA Diversion (S-TYPE, ABS) 09-11/13-16

MSRP: $137.98
(You save $50.10 )
(No reviews yet) Write a Review
Free Shipping

FREE fast shipping for USA. International delivery may take longer.

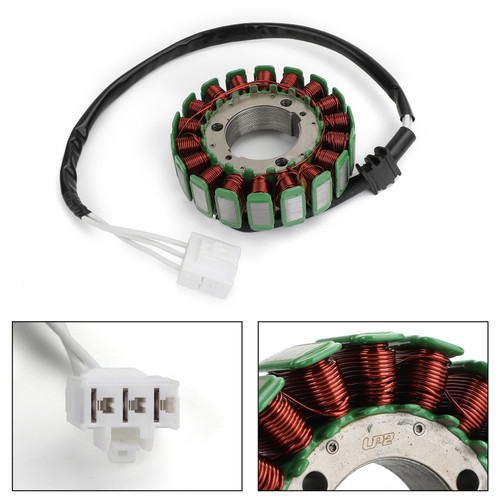

Magneto Generator Engine Stator Coil For Yamaha FZ6 FZ6R XJ6 F/FA/N/NA/S/SA Diversion 2009-2017

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 20S-81410-00

Dimensions :
Interior diameter : 41.3mm/1.62"
Exterior diameter : 105mm/4.13"
Pole's Thickness : 31mm/1.21"
Pole's Width : 14mm/0.55"

Other specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Number of fixation holes: 3(+1)
Number of poles: 18

For Yamaha FZ6 FZ6R 2009-2017
For Yamaha XJ6F Diversion F 2010-2017
For Yamaha XJ6FA Diversion F (ABS) 2010-2011/2013-2016
For Yamaha XJ6N XJ6-N (Naked) 2009-2016
For Yamaha XJ6NA XJ6-N (Naked, ABS) 2009-2011/2013-2016
For Yamaha XJ6S Diversion (S-TYPE) 2009-2011/2013-2016
For Yamaha XJ6SA Diversion (S-TYPE, ABS) 2009-2011/2013-2016

1x Generator Stator Coil

Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
